Removing the defective front panel module

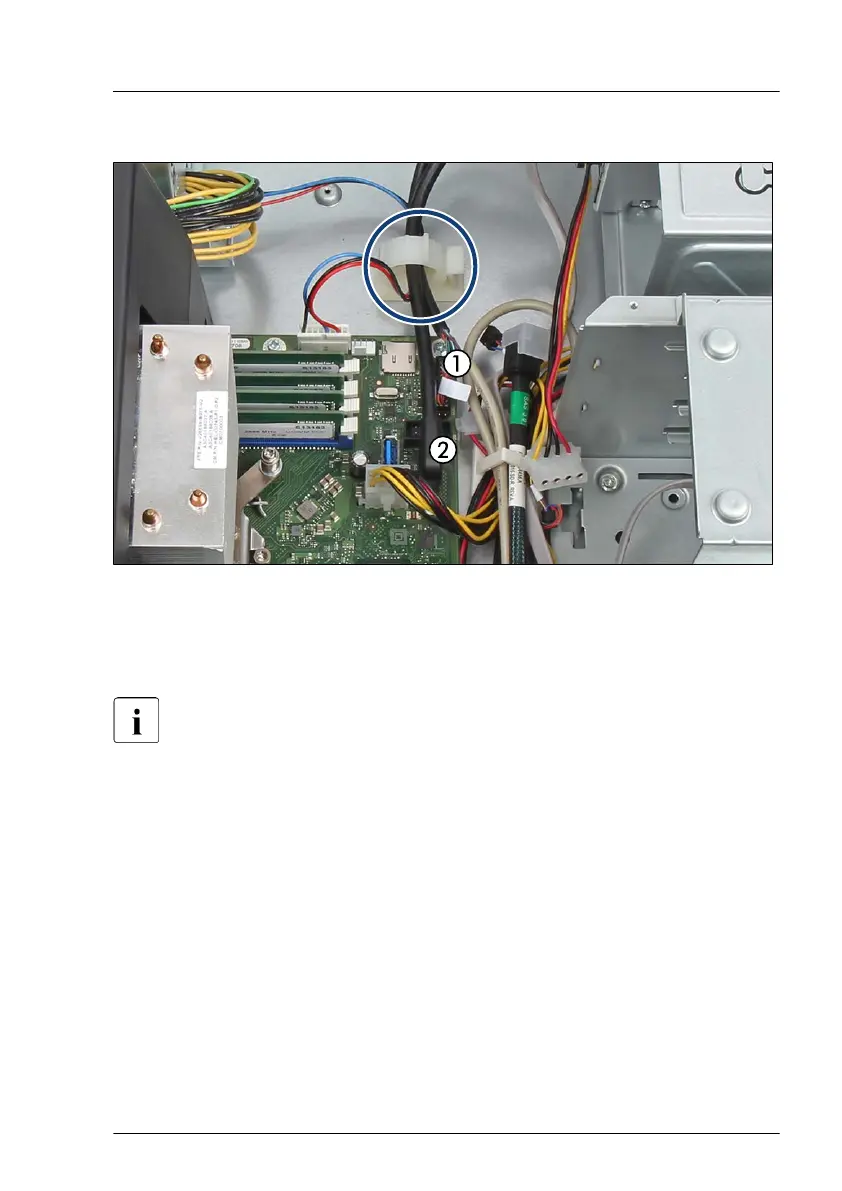

Figure 266: Disconnecting cables from system board
▶
Disconnect the front panel cables from the system board (1,2).
▶
Remove the front panel cables from the cable guide (see circle).
Unlocking and securing the front panel is illustrated by the example of
the rack server. In case of floorstand models, the accessible drive
locking bar is located on the top of the drive bay. Further information,
see
"Opening the accessible drive locking bar" on page 89.
Front panel
TX1330 M4 Upgrade and Maintenance Manual 405
