Installing the new front panel module

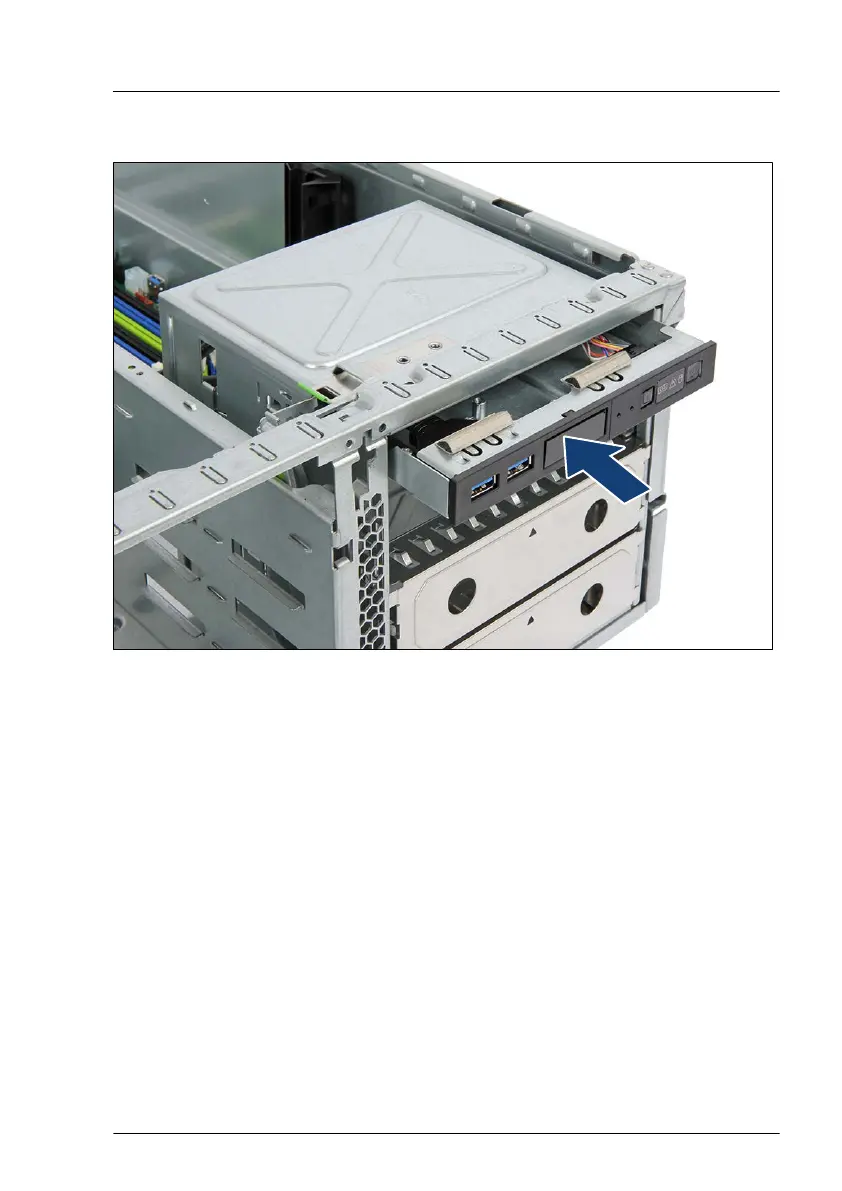

Figure 270: Installing the front panel module
▶
Insert the front panel module into its installation bay and carefully push in
until the front screw hole on the front panel frame lines up with the centering
pin on the locking bar.
Front panel
