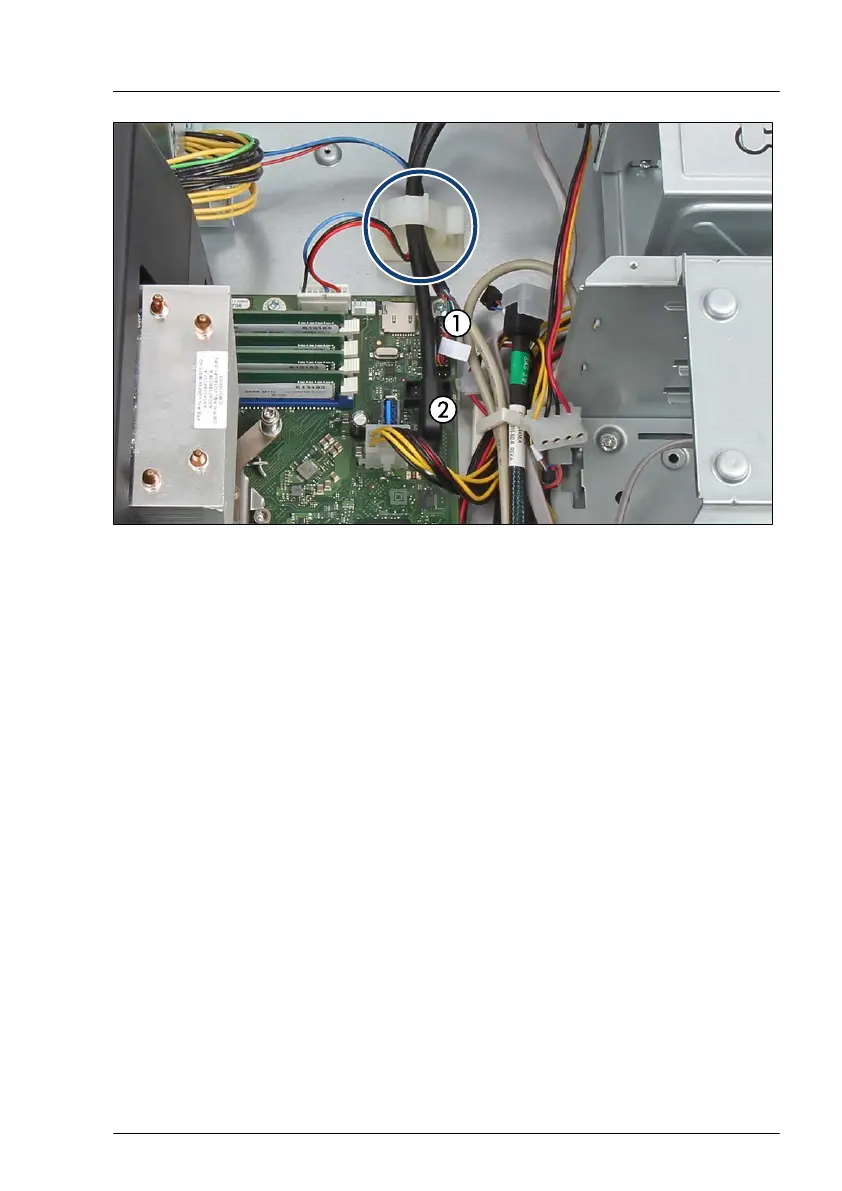

Figure 272: Connecting front panel cables
Connect the cables of the front panel to the system board:
1 Front panel cable to connector "Frontpanel".
2 Front USB cable to connector "USB 3.1 Front".
Run the front panel cables through the cable guide (see circle).
Concluding steps
If applicable, install the SAS expander board holder, see "Installing the SAS
expander board holder " on page
271.
Install the system fan module, see "Installing the system fan module" on
page 85.
"Reassembling" on page 66.
"Connecting the power cord" on page 79.
"Switching on the server" on page 81.
"Verifying system information backup or restore" on page 105.
"Using the Chassis ID Prom Tool" on page 126.
Front panel
TX1330 M4 Upgrade and Maintenance Manual 411
