"Getting access to the component" on page 50.
▶
Remove the system fan module, see "Removing the system fan module" on
page
82.
▶
If applicable, remove the SAS expander board, see "Removing the SAS
expander board" on page 273.
▶
If applicable, remove the expansion cards, see "Removing an expansion
card" on page 305.
Installing the TPM

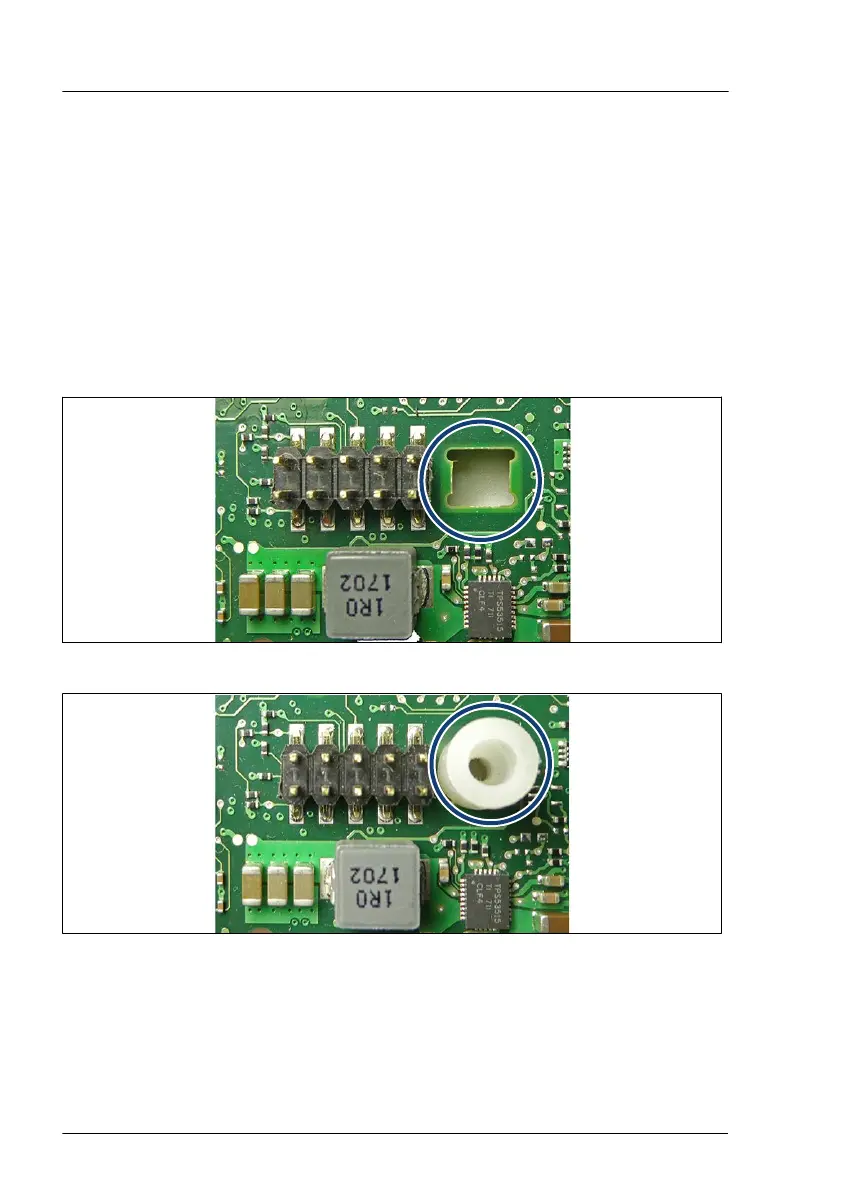

Figure 275: Position for the TPM spacer
Figure 276: Inserting the TPM spacer on the system board
▶
Insert the TPM spacer into the hole on the system board.
System board and components
418 Upgrade and Maintenance Manual TX1330 M4
