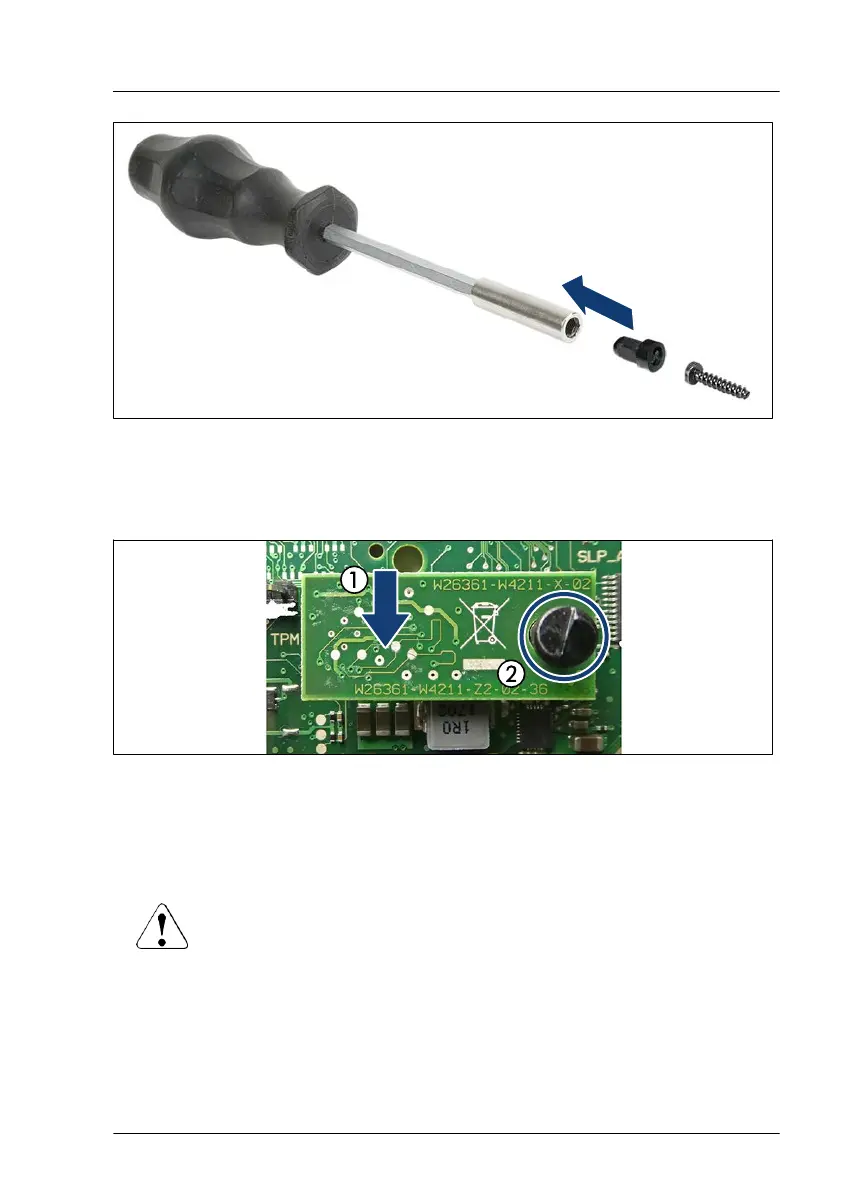

Figure 277: TPM bit insert
▶
Attach the TPM bit insert or TPM module fixing tool (for Japan) to a bit screw
driver.
Figure 278: Installing the TPM
▶
Connect the TPM to the system board (1).
▶
Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japan) (2).
CAUTION
▶
Do not fasten the screw too firmly.
▶
Stop it by extent where the head of the screw lightly touches the
TPM. Torque: 0.6 Nm (not used in Japan).
System board and components
TX1330 M4 Upgrade and Maintenance Manual 419
