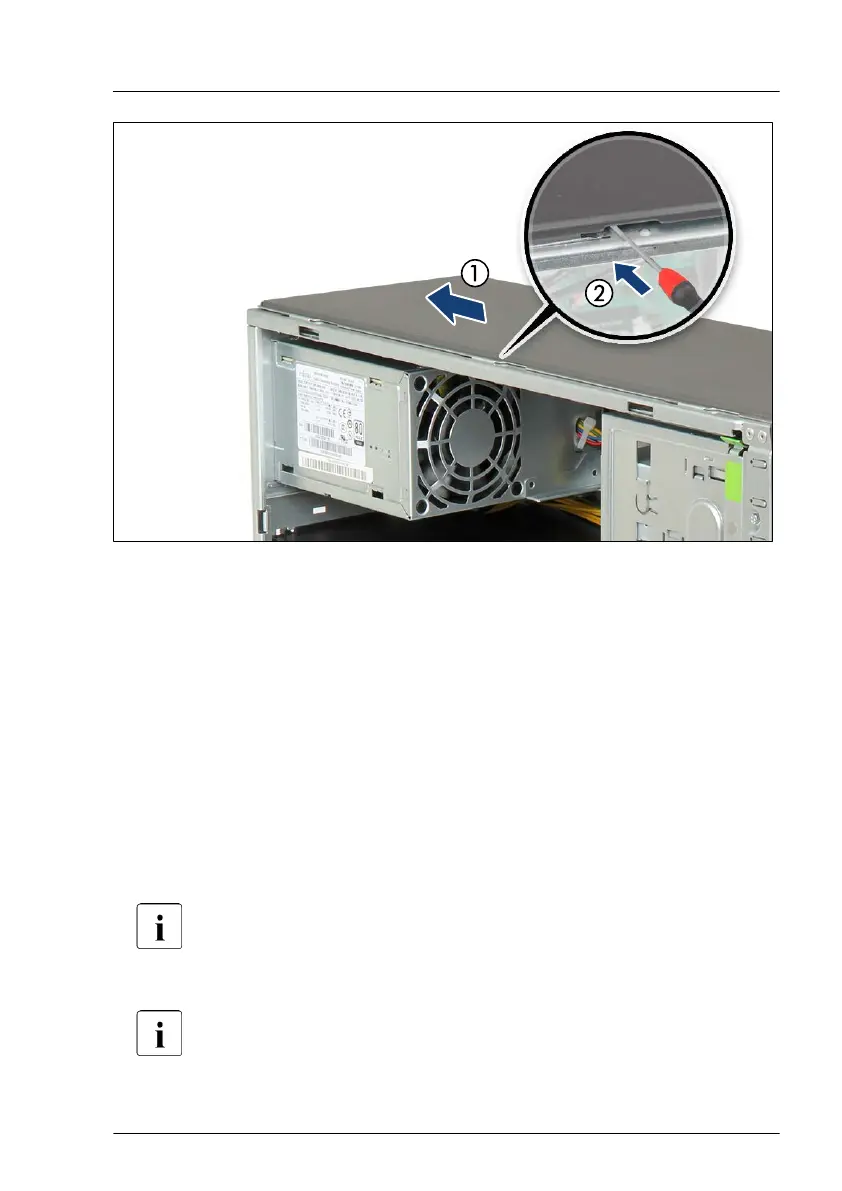

Figure 301: Removing the right side cover (B)
▶
Slide the right side cover towards the server rear as far as it will go (1).
▶
Remove the three hooks on the right side cover from the slots on the upper
chassis edge:
▶
Using a slotted screw driver
, slightly pry up on the middle hook until it
disengages (2).
▶
Pull up on both ends of the right side cover to remove the left and right
hooks from the slots on the upper chassis edge.
▶
Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
▶
Carefully turn the server upside down.
At least two people are needed to turn over a fully equipped server.
Remove HDDs and hot-plug PSUs in order to facilitate the task.
▶
Lift of
f and remove the right side cover
.
The right side cover is no longer required.
Converting a floorstand model to a rack model
TX1330 M4 Upgrade and Maintenance Manual 461
