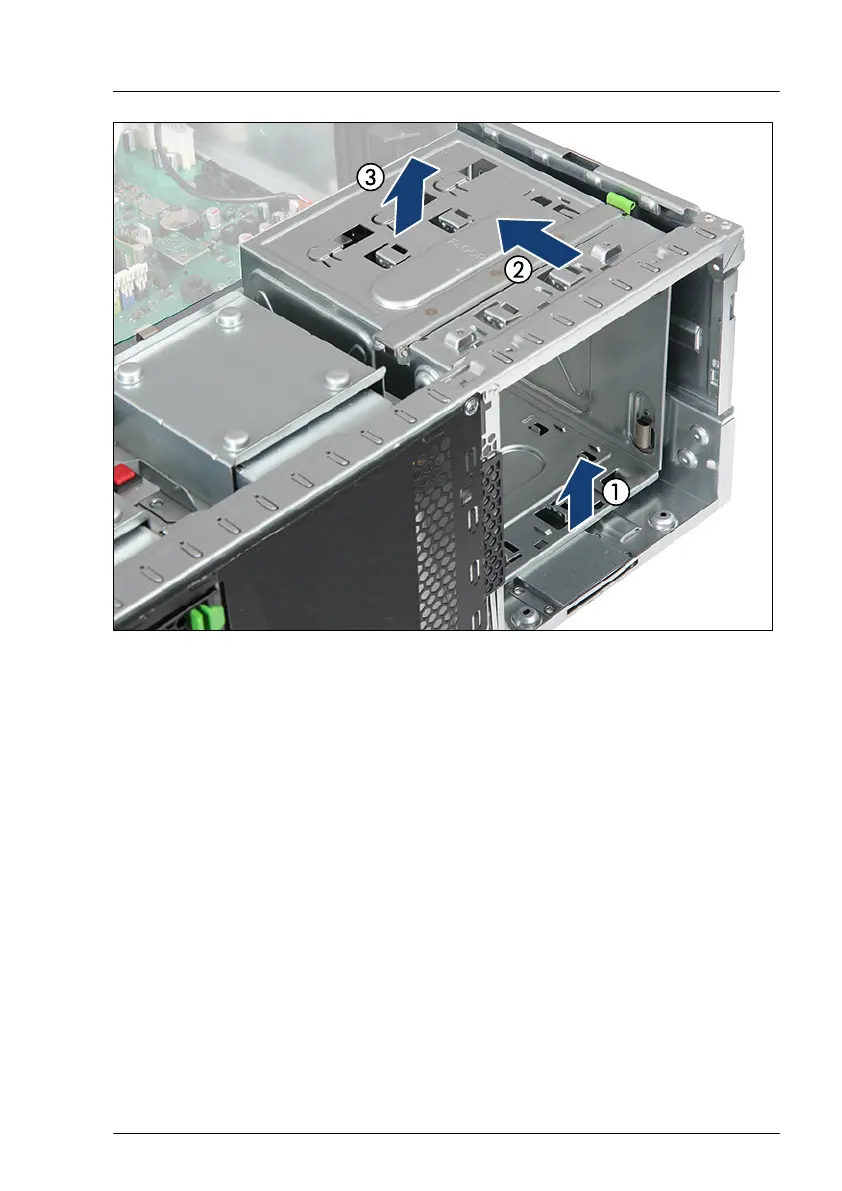

Figure 305: Removing the accessible drive cage
▶
Slightly lift up the accessible drive cage to disengage its front bottom edge
from the slot on the chassis floor (1).
▶
Slide the accessible drive cover from under the chassis frame as shown (2).
▶
Lift the accessible drive cage out of the chassis (3).
Converting a floorstand model to a rack model
TX1330 M4 Upgrade and Maintenance Manual 465
