Converting the accessible drive cage

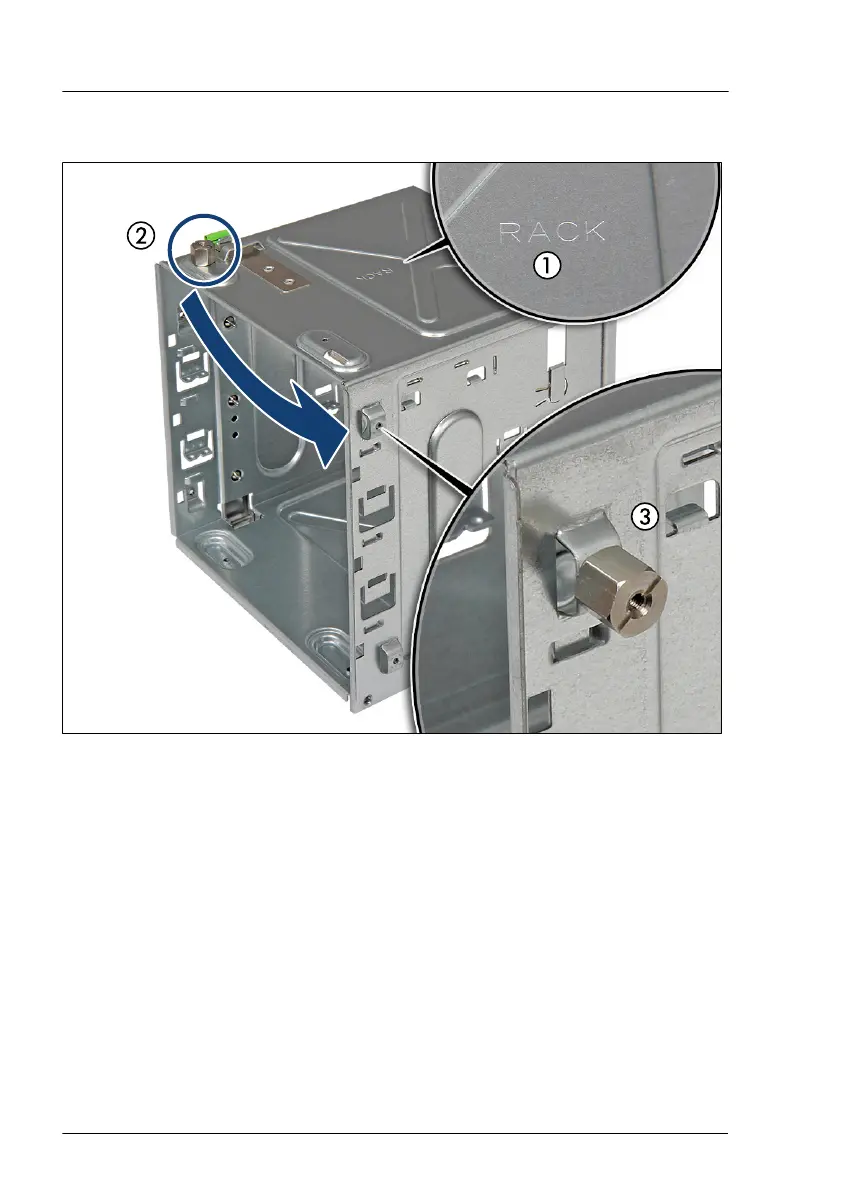

Figure 306: Converting the accessible drive cage
▶
Turn the accessible drive cover with its "RACK" stamping facing up (1, see
close-up).
▶
Remove the threaded bolt from the upper edge of the accessible drive cage
(2).
▶
Reinstall the threaded bolt on the side of the accessible drive cage as
shown (3, see close-up).
Converting a floorstand model to a rack model
