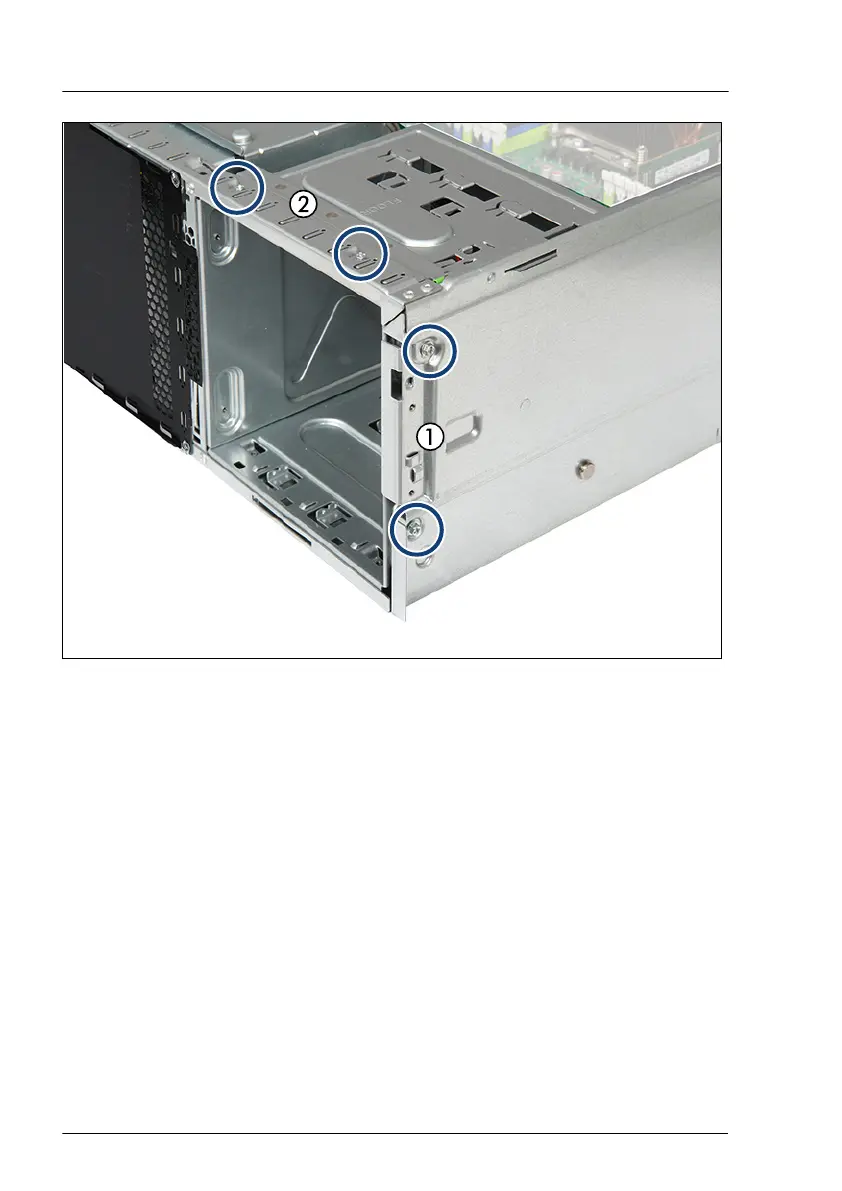

Figure 308: Securing the accessible drive cage (A)
▶
Secure the accessible drive cage with two screws to the right chassis edge
(1).
▶
Secure the accessible drive cage with two screws to the top edge of the
chassis (2).
▶
Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
Converting a floorstand model to a rack model
468 Upgrade and Maintenance Manual TX1330 M4
