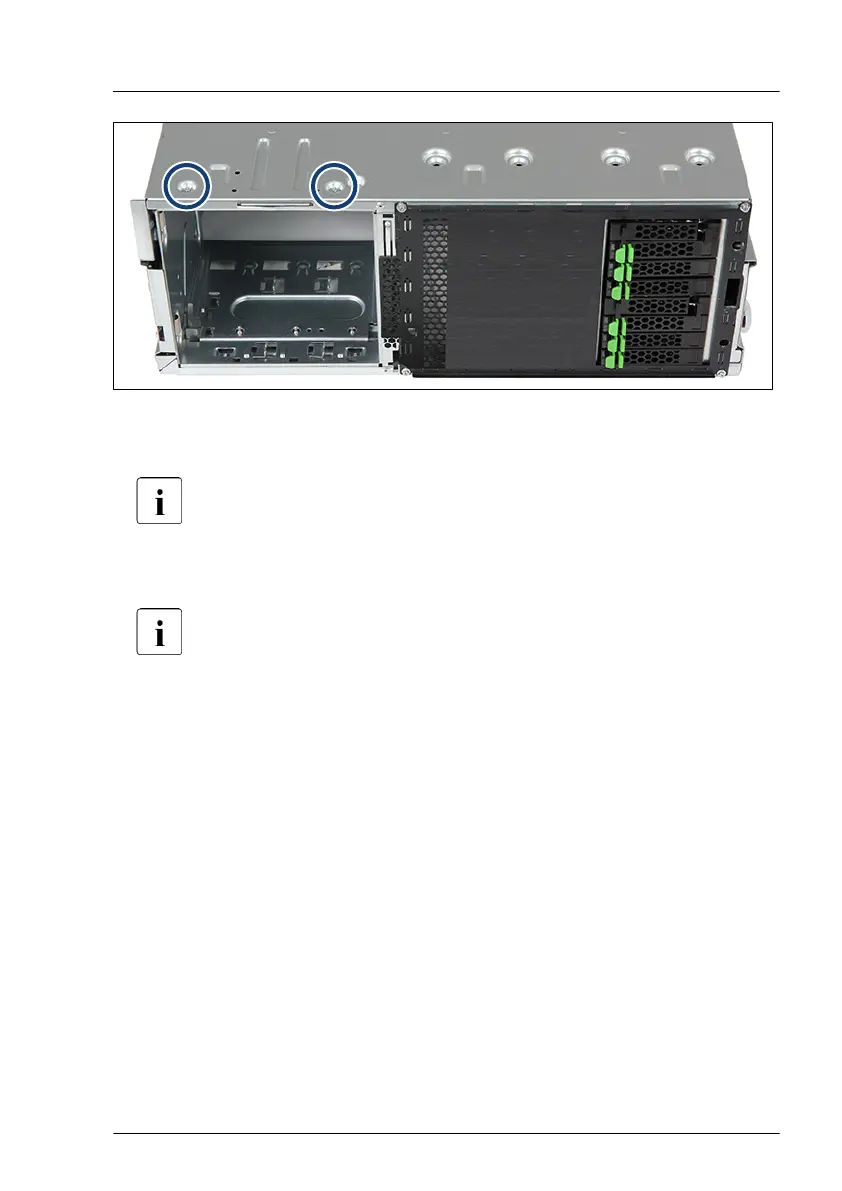

Figure 309: Securing the accessible drive cage (B)
▶
Carefully turn the server upside down.
At least two people are needed to turn over a fully equipped server.
Remove HDDs and hot-plug PSUs in order to facilitate the task.
▶
Secure the accessible drive cage with the two screws (see circles) to the
bottom side of the server.
Note the correct screw positions: The screw hole on the right that has
been used in the floorstand model configuration remains empty.
▶
Reinstall the front panel (rotated by 90 degrees), see "Installing the new
front panel module" on page 409.
▶
Reinstall all accessible drives into their original bays (rotated by
90 degrees), see "Installing an accessible drive" on page 366.
▶
Reinstall all accessible drive filler covers and front covers, see "Installing
accessible drive covers" on page 96.
▶
If applicable, install an HDD extension box, see "HDD extension box" on
page 241.
Converting a floorstand model to a rack model
TX1330 M4 Upgrade and Maintenance Manual 469
