Preparing the intrusion switch
▶
Remove the intrusion switch module, see "Removing the intrusion switch
cable" on page 476.
It is not necessary to disconnect the intrusion switch cable from the
system board.
▶
Attach a rubber bumper to the front intrusion switch and reinstall the
intrusion switch module, see "Installing the intrusion switch cable" on
page 480.
Assembling the rack front cover

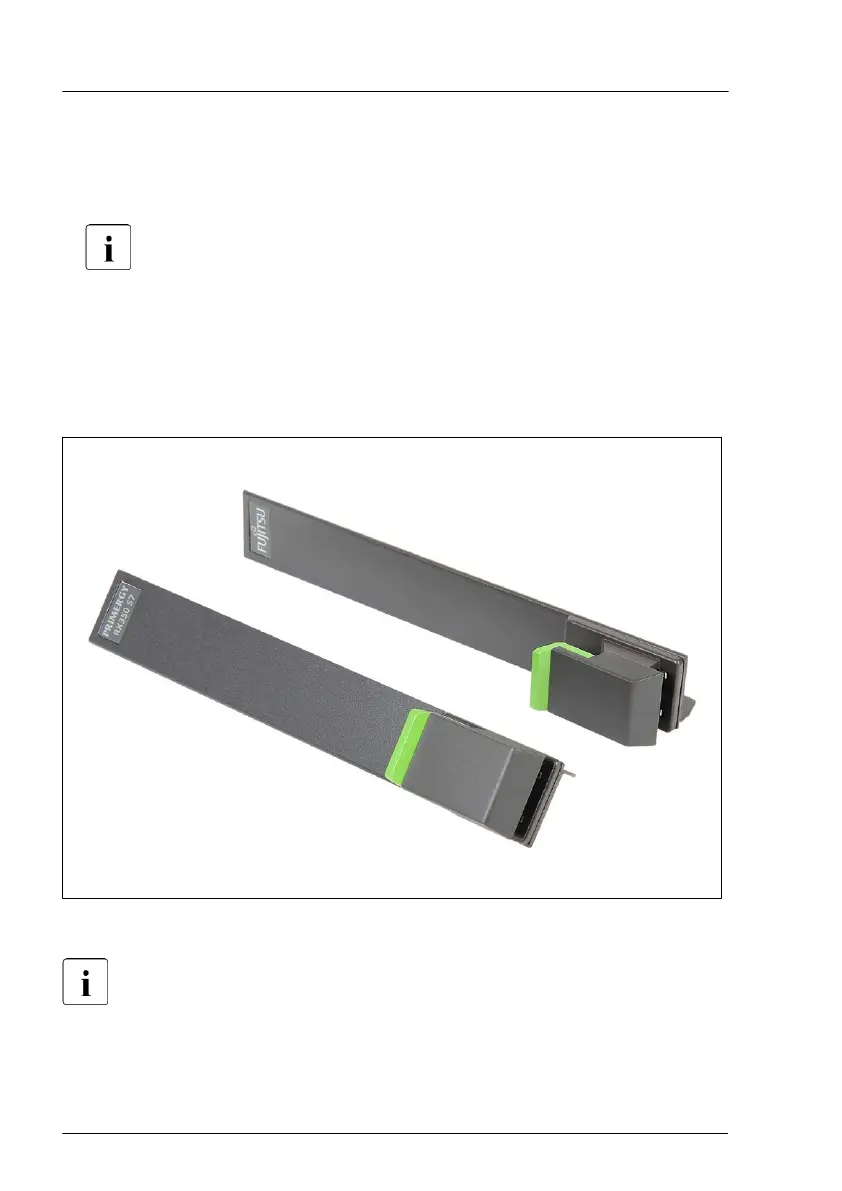

Figure 310: Rack mounting brackets with quick release levers
The rack front cover consists of a plastic frame and two rack mounting
brackets with quick release levers.
Converting a floorstand model to a rack model
470 Upgrade and Maintenance Manual TX1330 M4
