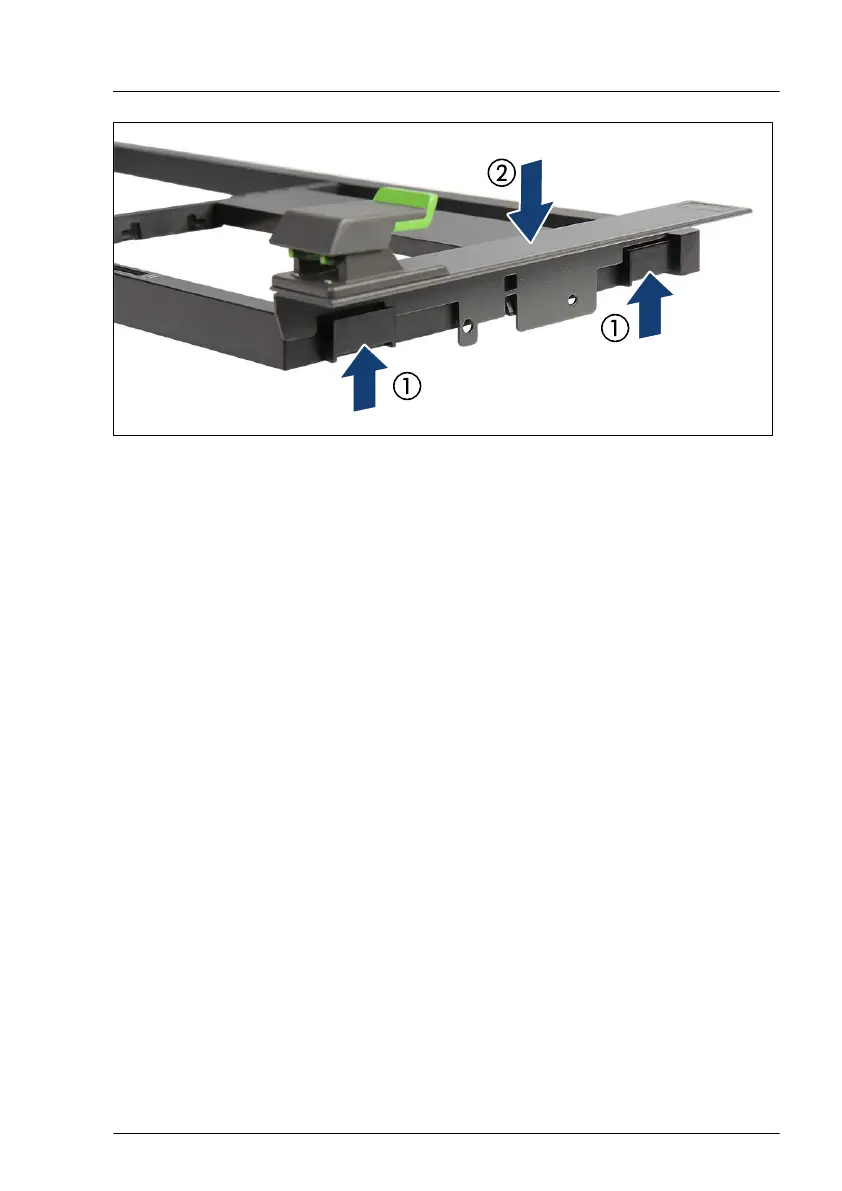

Figure 311: Installing rack mounting brackets
▶
Fit the rack mounting bracket with the FUJITSU logo on the two hooks on
the right side of the rack front bezel (1).
▶
Firmly press down on the rack mounting bracket until it is fully seated in the
rack front bezel (2).
▶
Mount the second rack mounting bracket to the left side of the rack front
bezel accordingly.
Converting a floorstand model to a rack model
TX1330 M4 Upgrade and Maintenance Manual 471
