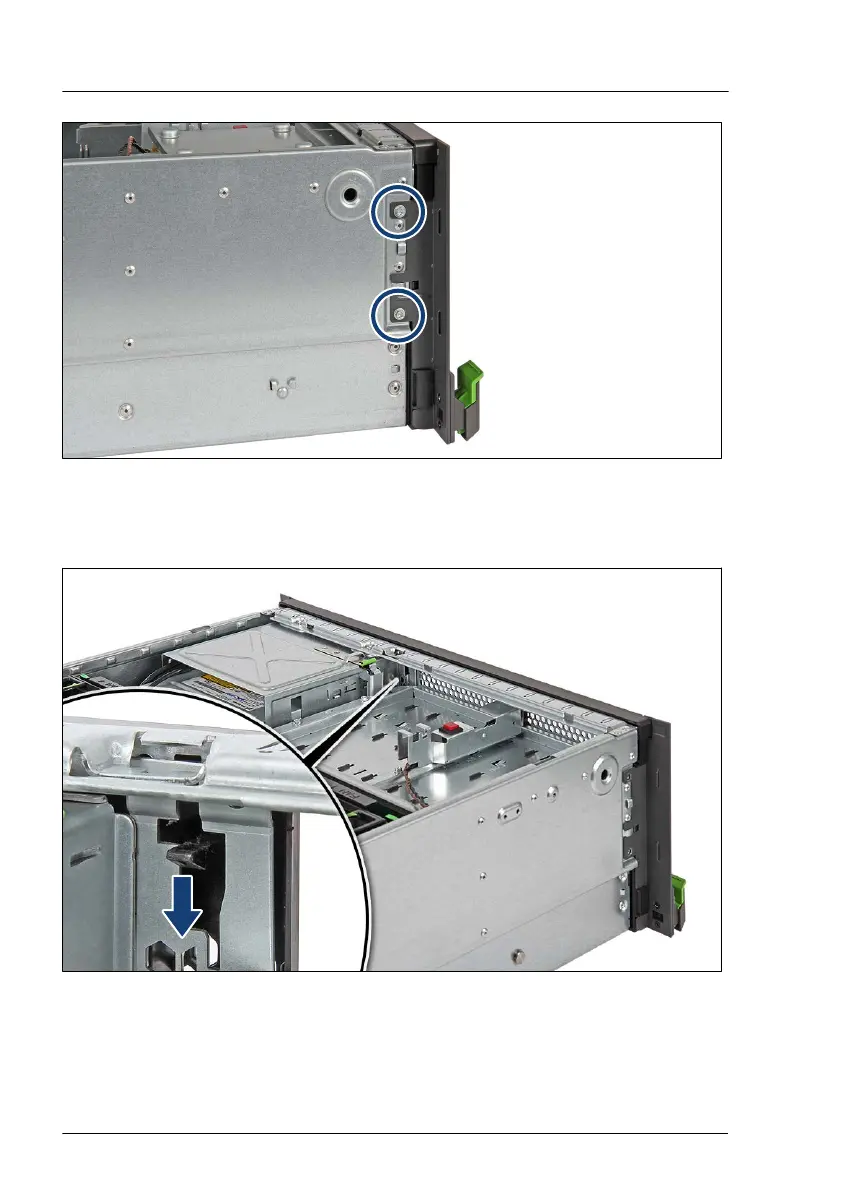

Figure 9: Removing the front cover (A)
▶
Remove two screws from the side brackets on either side.
Figure 10: Removing the front cover (B)
▶
Press down on the locking latch while slightly folding out the rack front
cover.
Basic hardware procedures
56 Upgrade and Maintenance Manual TX1330 M4
