Fujitsu PRIMERGY TX1330 M4

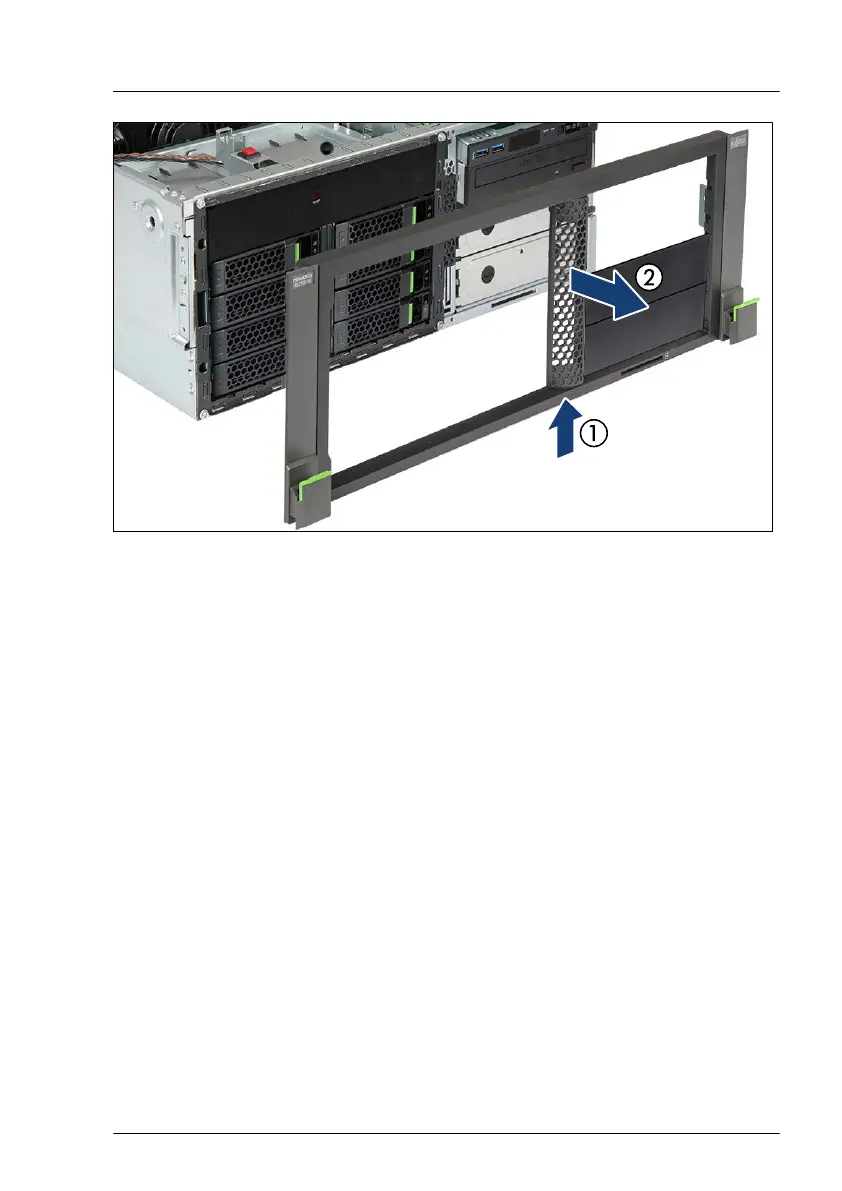

Figure 11: Removing the front cover (C)
▶
Press up on the plastic frame to disengage the bottom locking latch (1).
▶
Detach and remove the rack front cover to the front (2).
Basic hardware procedures
TX1330 M4 Upgrade and Maintenance Manual 57
