Fujitsu PRIMERGY TX1330 M4

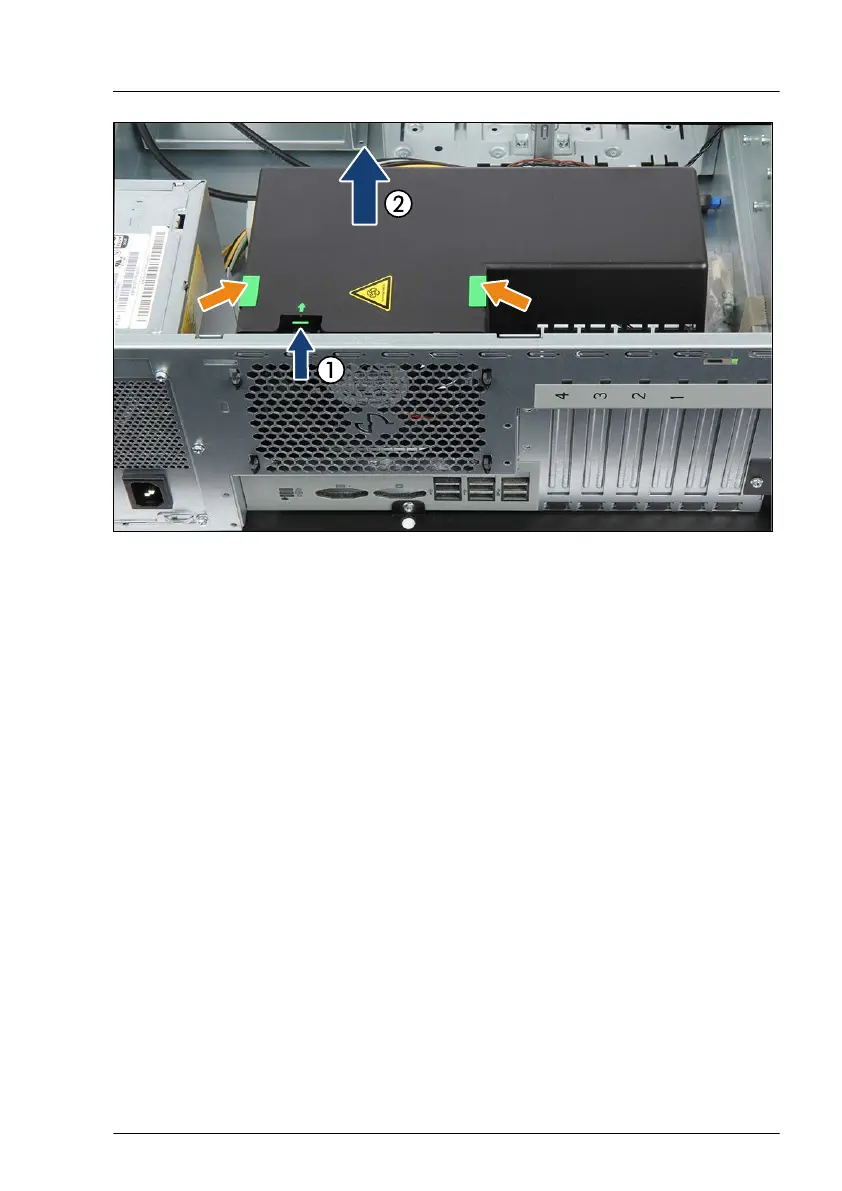

Figure 38: Removing the standard system fan module
▶
Press in on the locking tab while slightly lifting up the system fan module (1).
▶
Hold the fan module by the two green grips (see orange arrows) and lift it
out of the chassis (2).
Basic hardware procedures
TX1330 M4 Upgrade and Maintenance Manual 83
