Removing the redundant system fan module

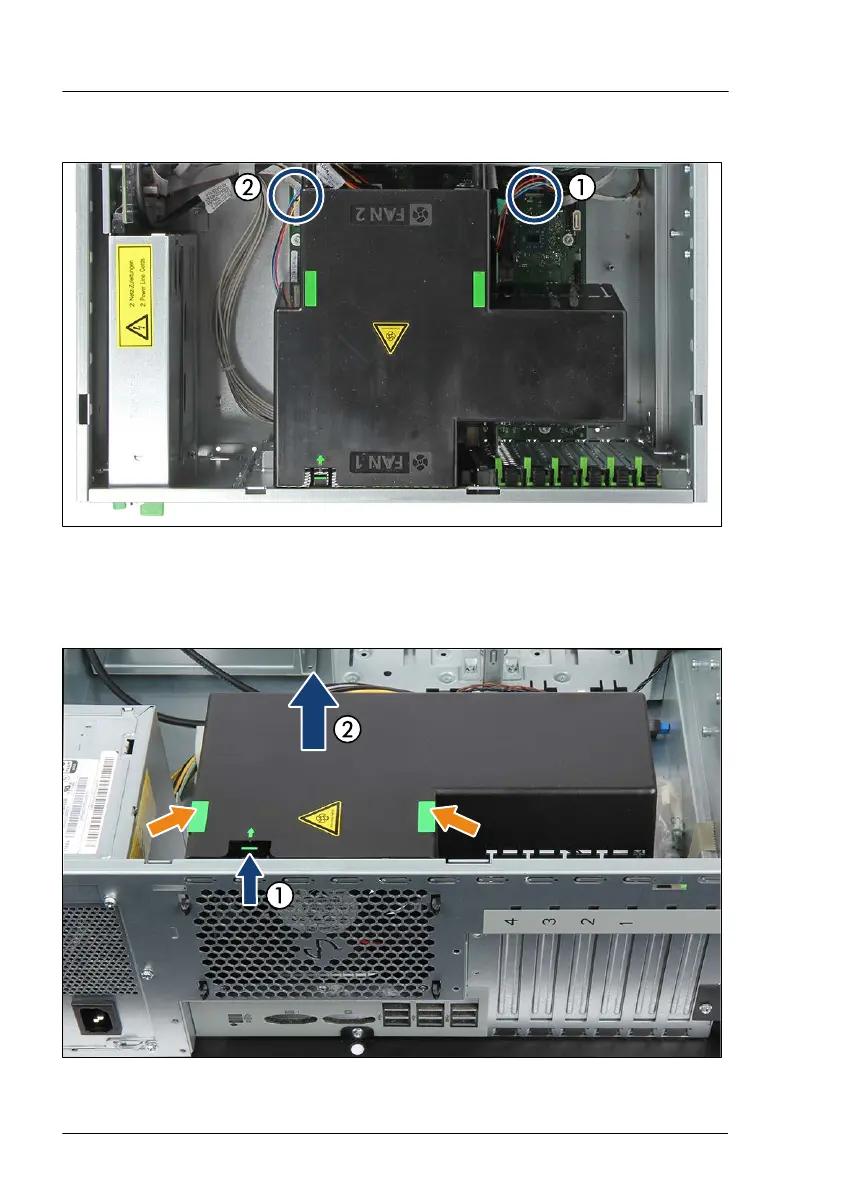

Figure 39: Disconnecting the fan cables
▶
Disconnect the fan cables from the system board connectors "FAN1" (1) and
"F
AN4" (2).
Figure 40: Removing the redundant system fan module
Basic hardware procedures
84 Upgrade and Maintenance Manual TX1330 M4
