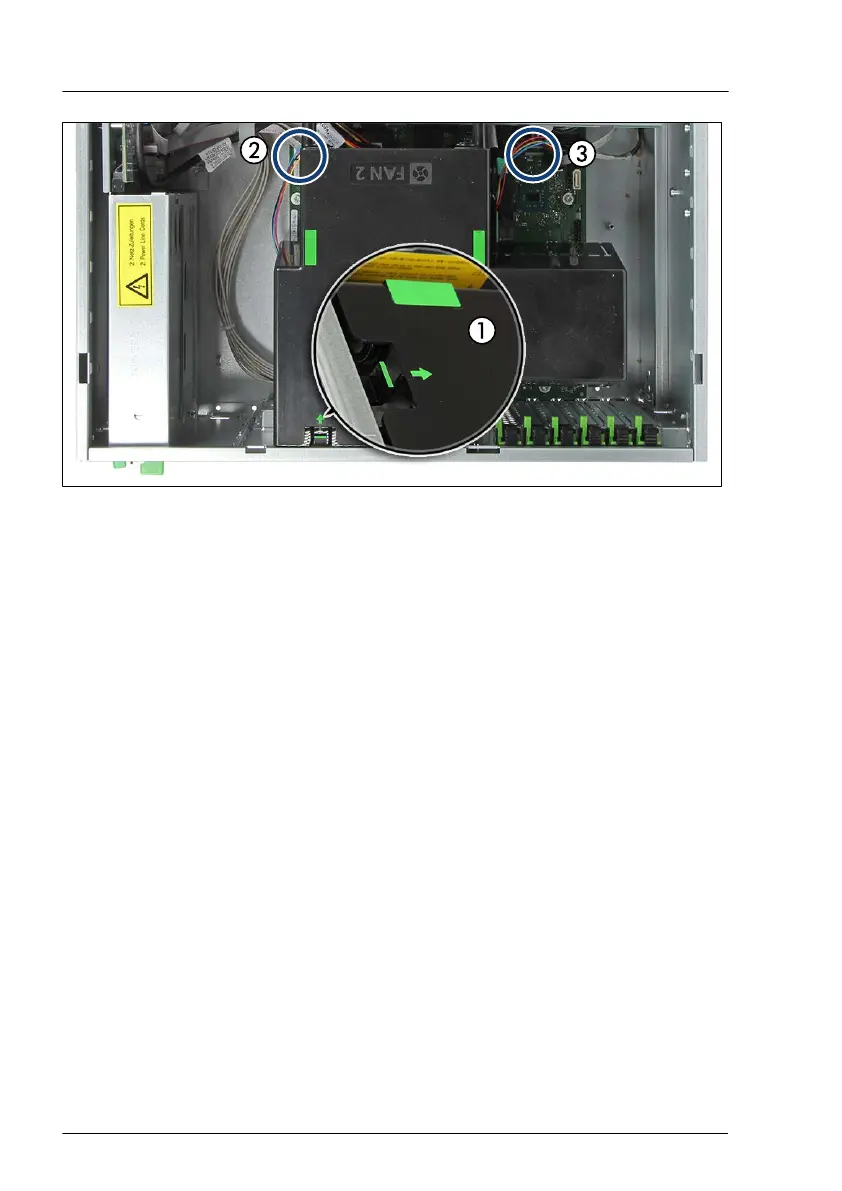

Figure 44: Connecting the system fan cable
▶
Ensure that the locking tab on the system fan module is properly engaged
with the upper rim of the chassis rear (1).
▶
Connect the fan cable from fan 1 to system board connector FAN4 (2).
▶
Connect the fan cable from fan 2 to system board connector F
AN1 (3).
Basic hardware procedures
88 Upgrade and Maintenance Manual TX1330 M4
