224

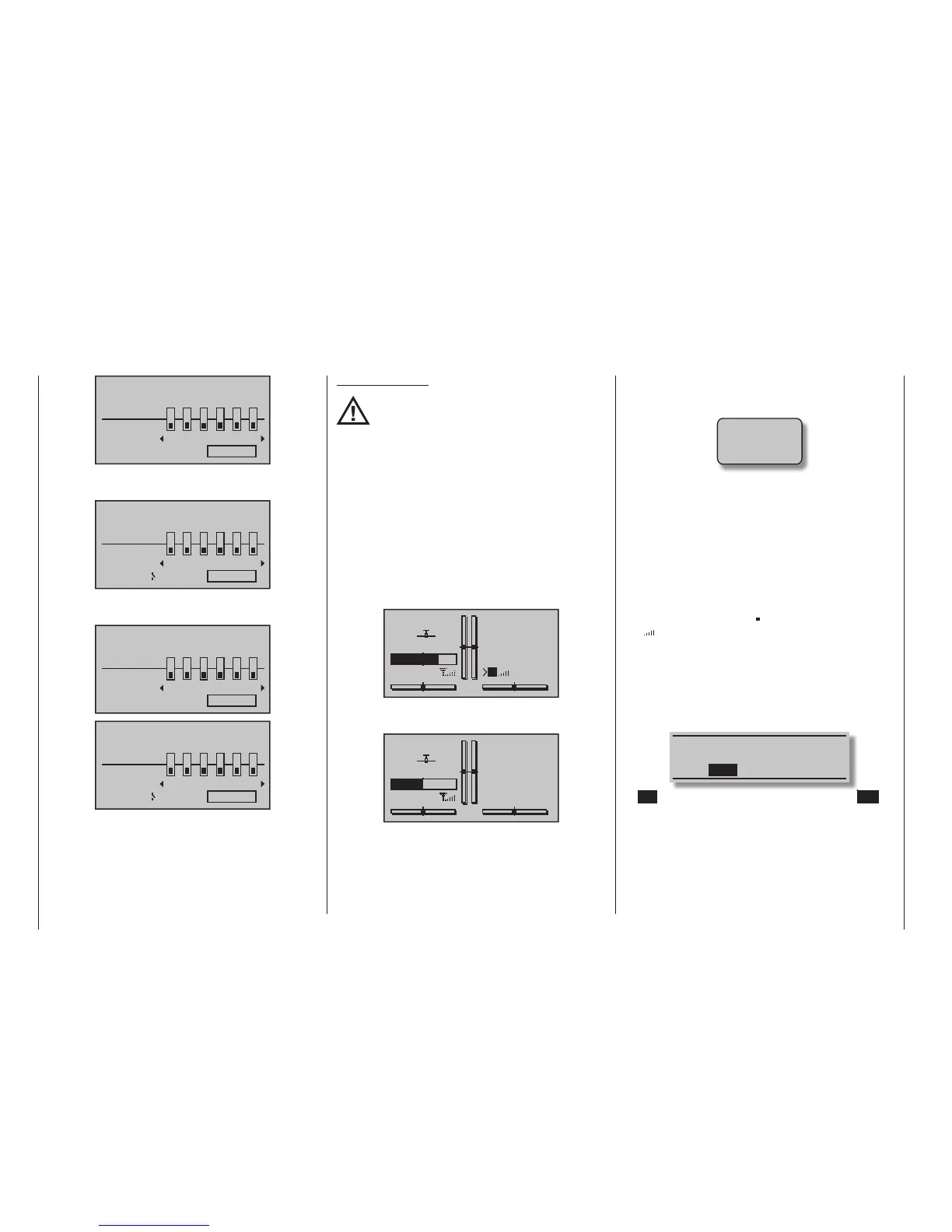

Program description - Teacher/pupil
Teacher / Pupil
Pupil
Teacher
2 3
4
5
BIND:SW: –––
1
Binding
6
… and repeat this immediately on the teacher transmit-
ter:
Teacher / Teacher
Pupil
Teacher
8 9
10
11
BIND:SW:
7
Binding
12
8
As soon as this process is complete, both screens will
show “ON” instead of the fl ashing “BINDING”:
Teacher / Pupil
Pupil
Teacher
2 3
4
5
BIND:SW: –––
1
ON
6
Teacher / Teacher
Pupil
Teacher
8 9
10
11
BIND:SW:
7
ON
12
8
You can return to the basic display on both screens
and start the training session after carefully checking all
of the relevant functions.
If neither transmitter or only one transmitter displays
“ON”, this means the binding process has failed: try
changing the positions of both transmitters and then
repeat the entire procedure.
Important notice:
Check that the model aircraft is operation-
al and check that all functions issue the
correct commands BEFORE setting up
trainer mode.
During the …
Training session
… the teacher and pupil can maintain a variable dis-
tance from one another. But you should stay “within
earshot” (max. 50 m) under any circumstances, how-
ever, no one else should be standing between the
teacher and the pupil since these persons could re-
duce the connection range of the return channel used
by the two transmitters.
In this operating mode, the basic display of the teacher
transmitter is as shown below …
GRAUBELE
#01
2:22h
Stp
Flt
«normal »
K78
0:00
0:00
5.5V
3.9V
P
HoTT
RFC–Teach
… and the pupil transmitter’s display will look some-
thing like this:
ELEVE
#01
3:33h
Stp
Flt
«normal »
K78
0:00
0:00
5.5V
3.8V
HoTT
RFC –Pupil
If, however, the connection between the teacher and
pupil transmitters should be lost during the training
session, then the teacher transmitter will automatically
assume control of the model.
If the trainer mode switch is in the “Pupil” position when
connectivity is lost, the Warning LED on the teacher
transmitter will blink and audible warning signals will
also be sounded for as long as the signal is lost. The
basic display also displays the following warning notice:
No
pupil
signal
However, if only the character string “HF –” blinks on
the transmitter’s basic display accompanied by the au-
dible warning signals, the pupil signal has been lost but
the trainer mode switch is set to the “Teacher” position.
In both cases, your fi rst step should be to reduce the
distance between the two transmitters. If this does not
help, then you should land immediately and establish
the cause.
If both transmitters are operational and the receiver
system is switched off, then the teacher transmitter’s
basic display will show the
icons instead of the “famil-
iar” . The antenna icon will also fl ash and an audible
warning signal will sound twice per second.
Resuming trainer mode
If you switch off one or both transmitters during the
session – for whatever reason – then the basic display of
the transmitter(s) shows the following question after be-
ing switched back on:
Please select
Trainer link?
ACT INH
If “INH” (set) is confi rmed by tapping the centre SET
key of the right four-way button or, alternatively, by
waiting for approx. two seconds until the message dis-
appears. Then you will reset the transmitter in question
back to its “normal” operating mode.
