Programming examples - Control of temporal processes
–100%
–100%
Input
Output
Point
L
C.Mix10
normal
Curve
9 10
–100%
on

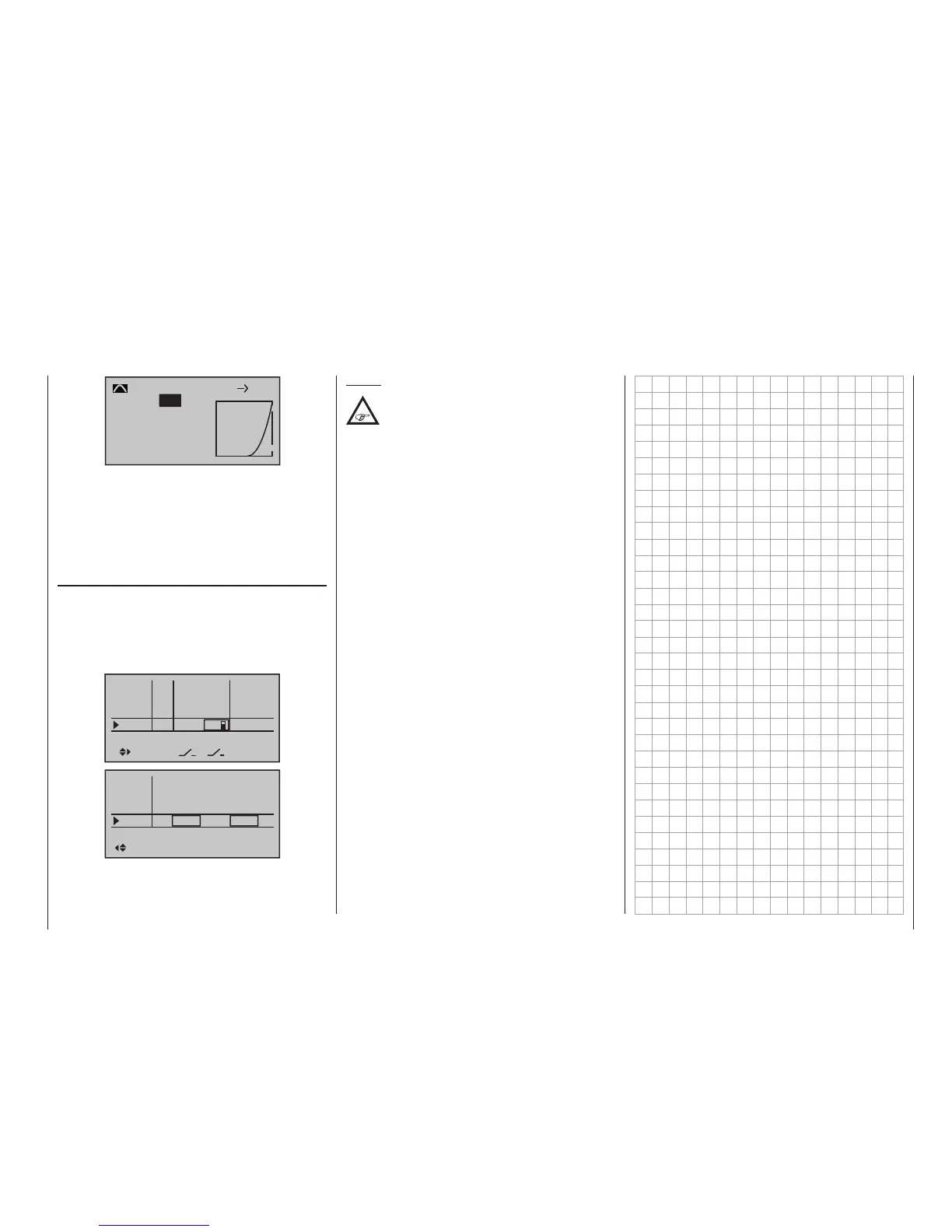

The function you programmed functions as desired
according to these suggestions – which you can verify
at any time after switching to the »Servo display« by
simultaneously pressing the keys of the left four-
way button – then to, complete the programming, an
arbitrary switch, such as “SW 15” is assigned in the
menu …
»Control adjust« (page 112 or 116)
… to the control channel used instead of the selected
side-mounted proportional control – in these examples
“Lv1” to channel “9” – and the desired symmetric or
asymmetric time span is set in the “– Time +” column
for the amount of time in which the function should
ultimately take place:
In6
offset
0%
0%
0%
–––
0%
In7
In8
In9
–––
–––
GL
GL
GL
GL
typ
normal
fr
fr
fr
–––
15
In6
– time +
0.0s
0.0s
0.0s
9.9s
In7
In8
In9
0.0s
0.0s
0.0s
9.9s
Thermik
Notice:
In the course of the switch assignment,
always bear in mind that you can also trigger
multiple functions with one switch! For
example, with the same switch a landing gear con-
nected to Output 6 can be started and, as shown
here as an example, the time-controlled landing gear
aps connected to Output 9 and/or the headlight, etc.
