Steps of
Viewing Results

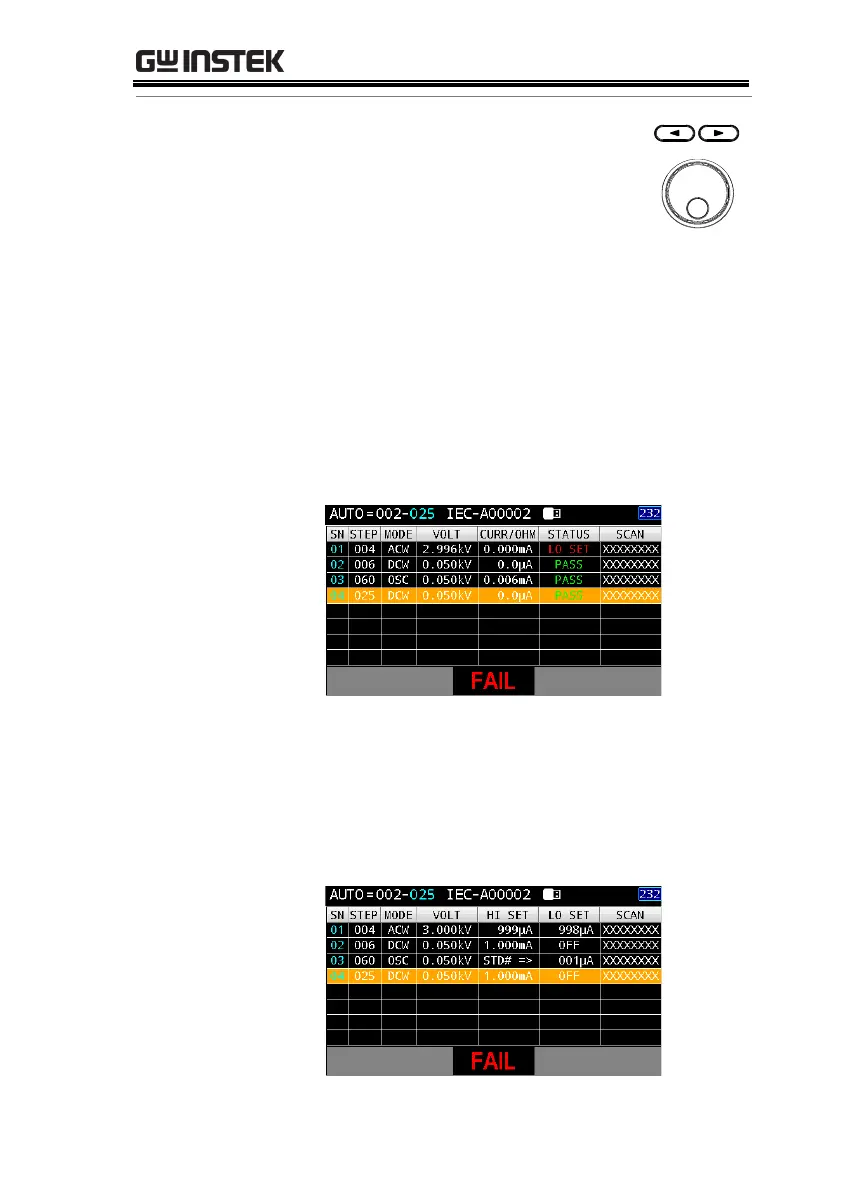

1. When an AUTO test is finished, the
detailed test results along with
values of each step are presented
within the resultant table. Press the
arrow keys to toggle different pages
and use the scroll wheel to move
among steps for checking.
The page 1 shown below, in addition to the
fixed step of serial number (SN), MANU step
number (STEP) and MODE, includes the actual
test VOLT, measured CURR/OHM, judged
STATUS and the actual SCAN judgments of
each channel.
AUTO steps list – page 1
The page 2 shown below, in addition to the
fixed step of serial number (SN), MANU step
number (STEP) and MODE, includes the set test
VOLT, HI & LO SET as well as SCAN
deployment.
AUTO steps list – page 2
