GETTING STARTED
19

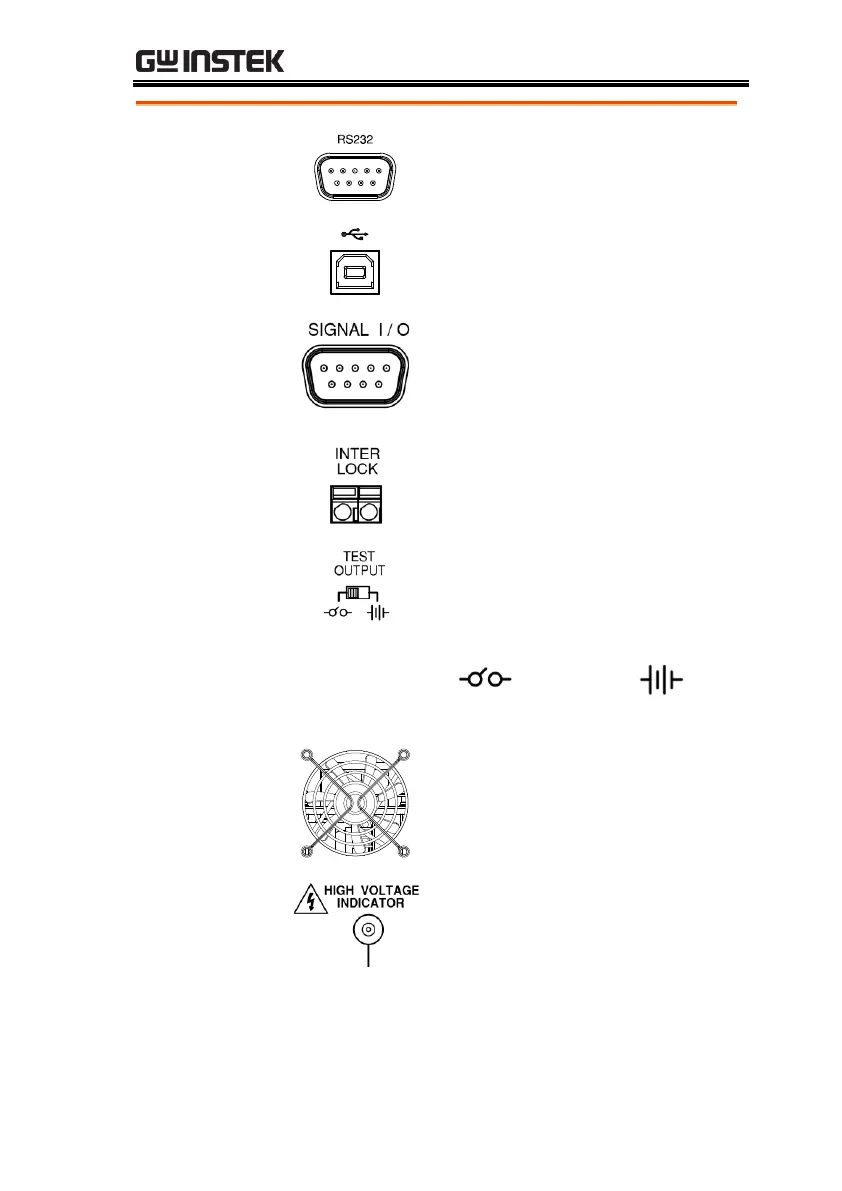

The RS232 port is used for remote
control.
USB B-Type
Interface Port
The USB B-Type port is used for
remote control.
The SIGNAL I/O port is used to
monitor the tester status (PASS,
FAIL, TEST) and input (START/
STOP signals).
The INTERLOCK terminal is used
to connect with interlock wire for
safety operation.
When SIGNAL I/O is utilized,
depending on the applied device, it
can be toggled between power
symbol and contact symbol.
Exhaust fan. Allow enough room
for the fan to vent. Do not block the
fan openings.
The HIGH VOLTAGE indicator will
light up when an output terminal is
active. Only after the test has
finished or stopped will the lamp
turn off.
