GPT-9500 Series User Manual
20

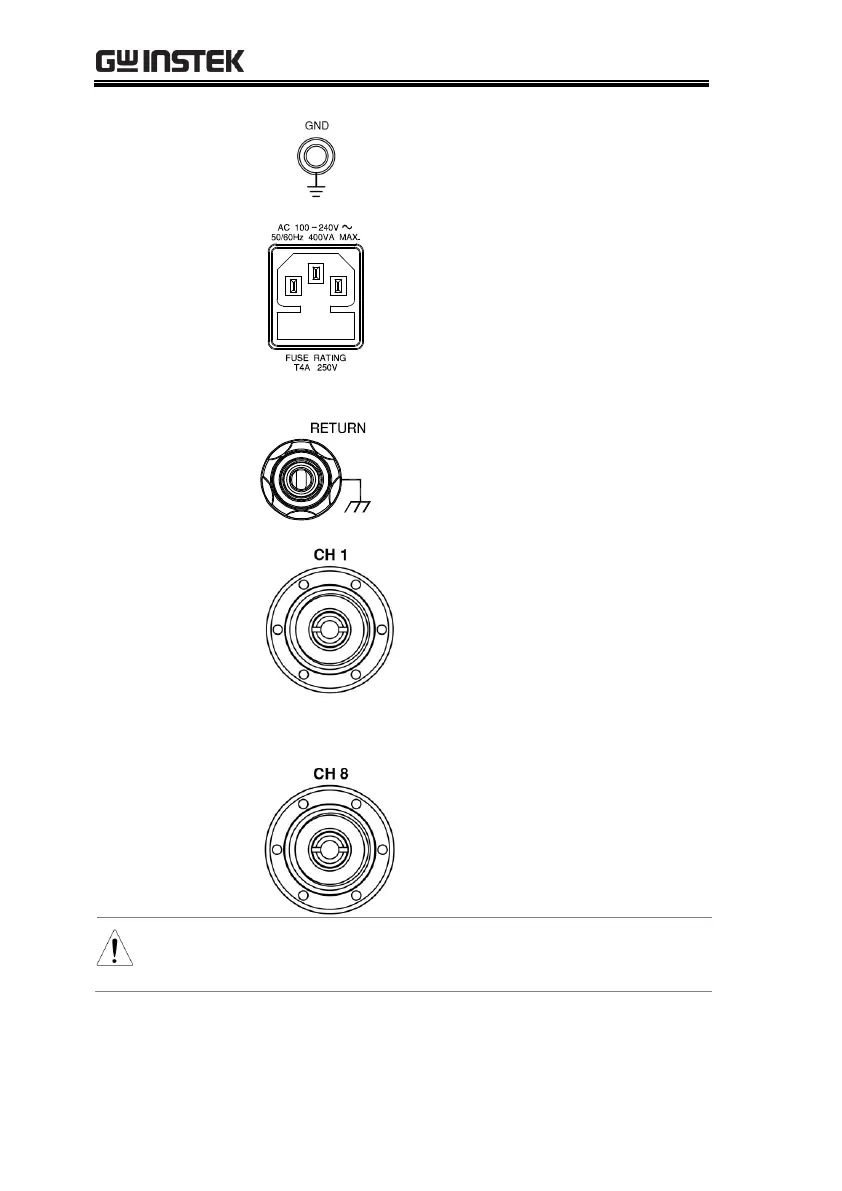

Connect the GND (ground)
terminal to the earth ground.
AC Mains Input for Power Cord
Socket: 100 – 240 VAC ±10%.
The fuse holder contains the AC
mains fuse. For fuse replacement
details, see page 45.
The RETURN terminal is used for
ACW, DCW and IR tests. Note that
it can be shared by HIGH
VOLTAGE output terminals (CH1 –
CH8) jointly at the same time.
HIGH VOLTAGE
output terminals
(CH1 – CH8)
The HIGH VOLTAGE terminals
outputs (CH1 – CH8) are used for
outputting the testing voltage in
ACW, DCW and IR tests. The
terminals are recessed for safety
and used in conjunction with the
RETURN terminal.
For GPT-9513, all channels are
selectable for HV output, L-
Return and non-used, whilst all
channels of GPT-9503 are
selectable for HV output and
non-used only.
USE WITH EXTREME CAUTION. Do not touch
the HIGH VOLTAGE terminal during testing.
