GW Instek GPT-9500 Series User Manual

REMOTE CONTROL
197

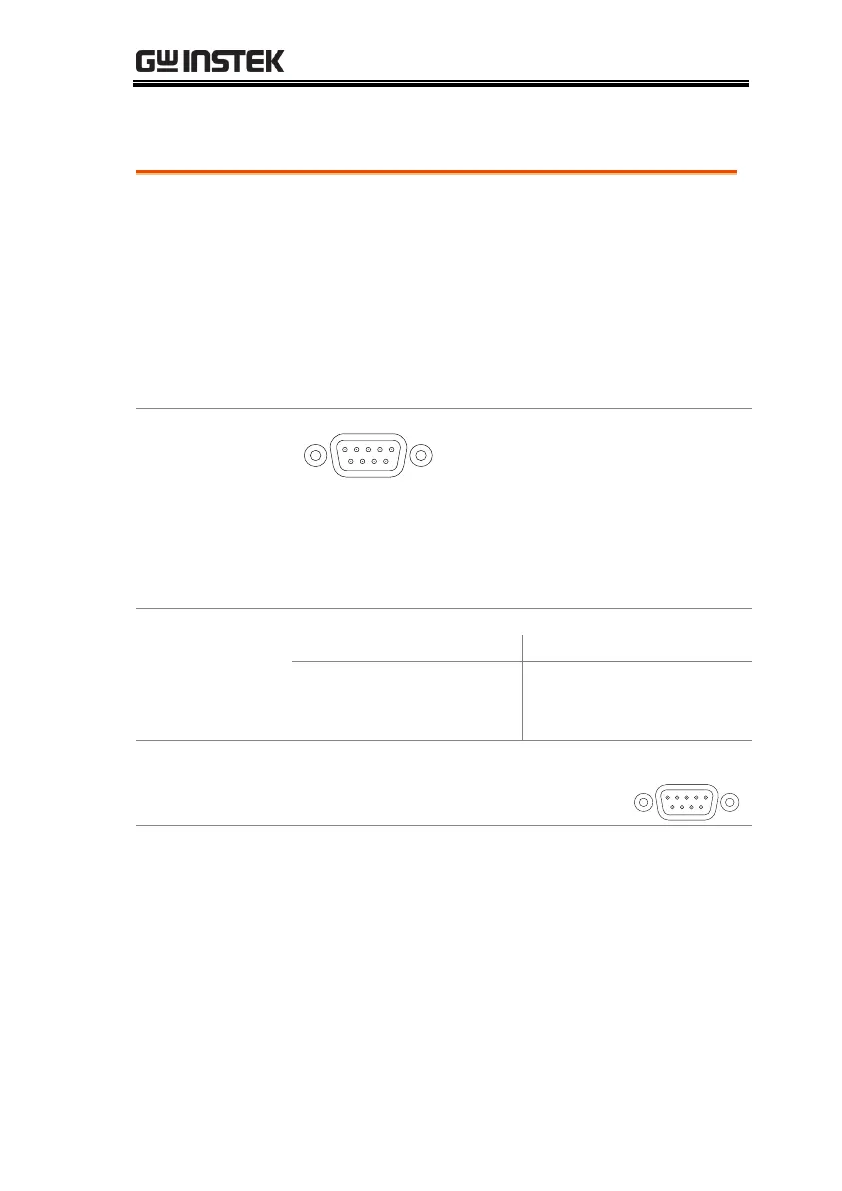

RS232 Remote Interface
RS232
Configuration
Connection
Null modem cable
Baud rate
9600, 19200, 38400, 57600, 115200
Parity
OFF, EVEN, ODD
Data bits
8
Stop bit
1
Flow control
None
Pin Assignment
5 4 3 2 1
9 8 7 6
1: No connection
2: TxD (Transmit Data)
3: RxD (Receive Data)
4: No connection
5: GND
6-9: No connection
Connection
PC
GPT-9500
DB9 Pin
Signal
Signal
DB9Pin
2
RxD
TxD
2
3
TxD
RxD
3
5
GND
GND
5
Panel operation
1. Connect the Null modem cable to
the rear panel RS232 port.
RS232
2. Set the Interface to RS232 from
the UTILITY page.
Page 181
