GW Instek GPT-9500 Series User Manual

GPT-9500 Series User Manual
22

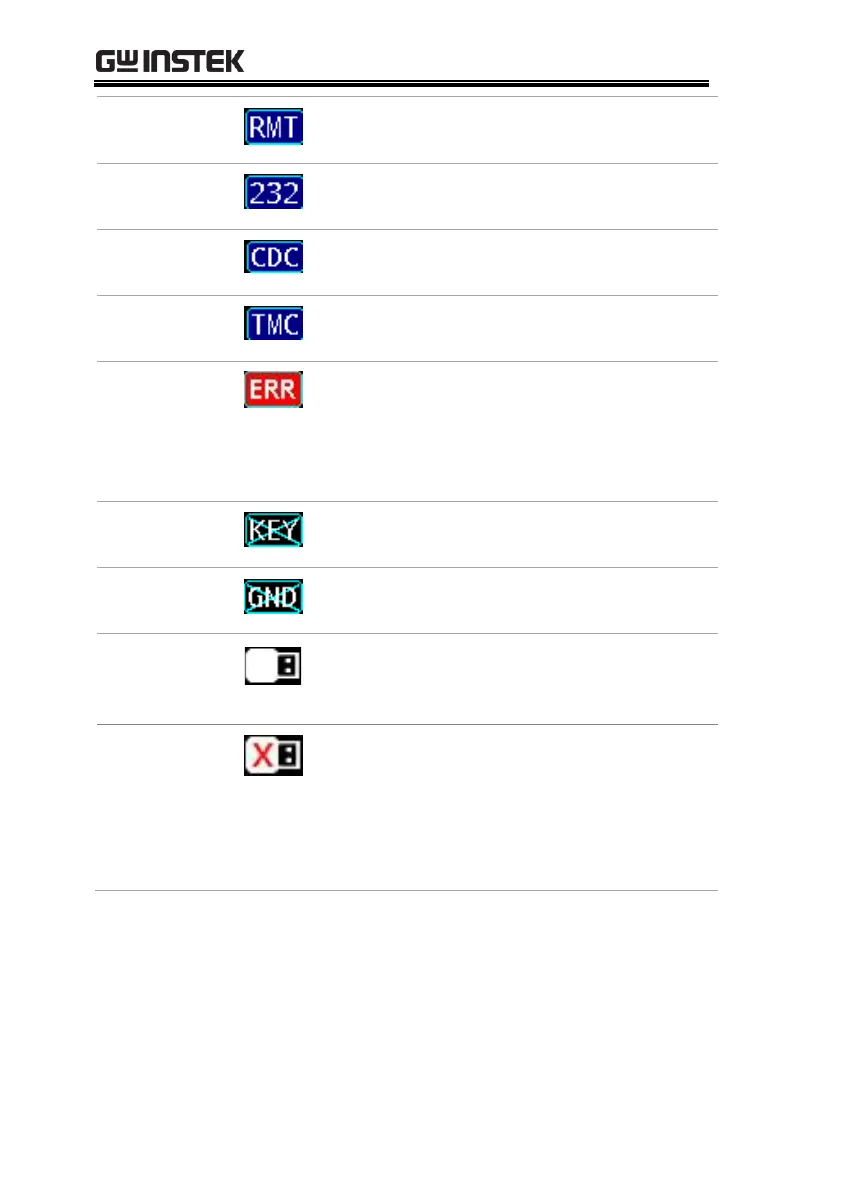

Remote
Control
It indicates the unit is under remote
control. Refer to page 195 for details.
RS232
It indicates RS-232 interface is activated.
Refer to page 181 and 197 for details.
USB - CDC
It indicates USB - CDC interface is activated.
Refer to page 181 and 196 for details.
USB - TMC
It indicates USB - TMC interface is activated.
Refer to page 181 and 196 for details.
ERROR
It indicates error occurs in command of
remote control. To erase the error icon, it is
required to read or sweep the error by
remote control commands or reboot
action. Refer to page 269 for details.
Panel Key
Lock
It indicates the Panel Key Lock function is
enabled. Refer to page for 80 details.
Power GND
Check
It indicates the Power GND Check function
is enabled. Refer to page for 157 details.
USB Flash
Drive –
connected
It indicates the USB flash drive is well
connected with unit and ready for storage,
firmware upgrade or screenshot hardcopy.
USB Flash
Drive –
not available
It indicates something error occurs and thus
USB flash drive fails to connect to unit.
Usually this icon shows for few seconds
firstly when flash drive is being connected
to unit since the inserted flash drive is in
the process of being identified by unit.
