OPERATION
83

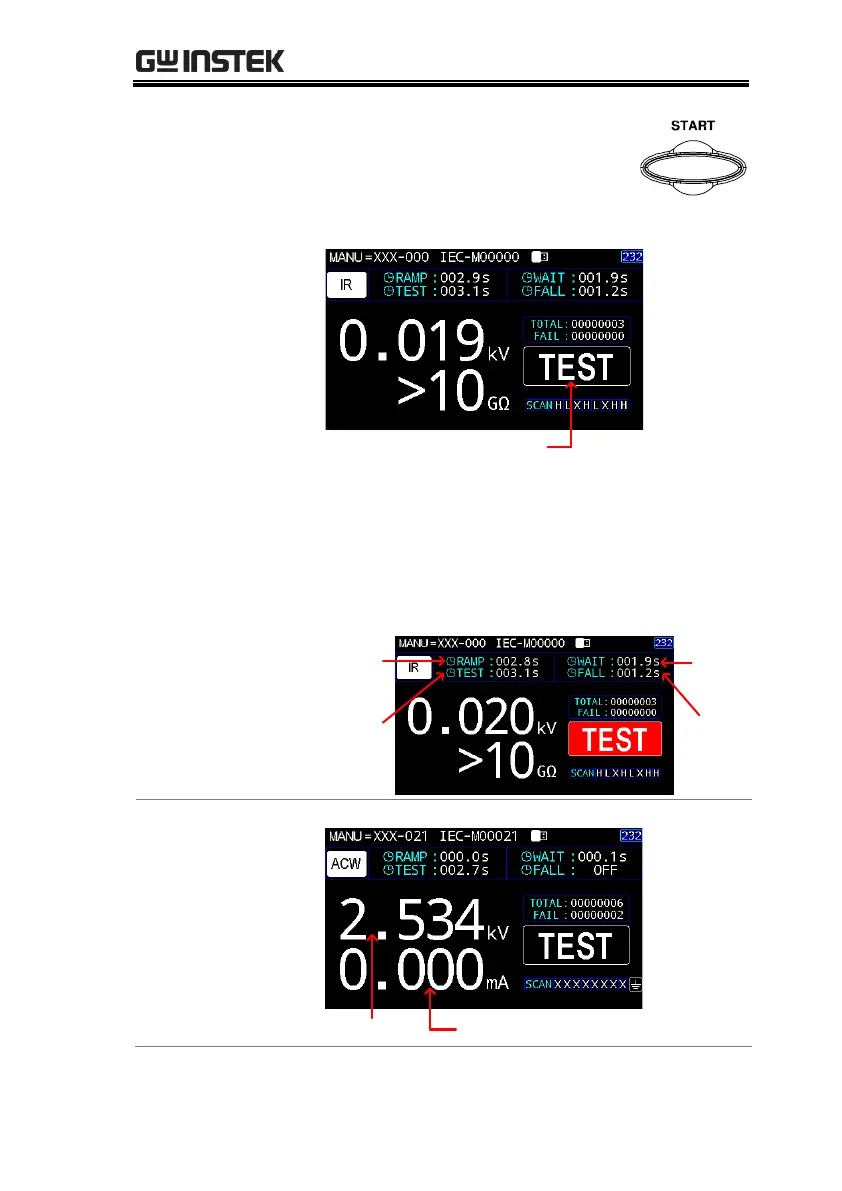

2. Press the START button when the
tester is in the READY status. The
manual test starts accordingly and
the tester goes into the TEST status.
TEST status
3. The test will start by showing the ongoing
RAMP time followed by ongoing WAIT time
and the ongoing TEST time and, finally, the
ongoing FALL time. The test will continue until
the test is finished or stopped.
Ongoing
RAMP
time
Ongoing
TEST
time
Ongoing
WAIT
time
Ongoing
FALL
time
ACW Example
Test Voltage Measured Current
