GPT-9500 Series User Manual
84

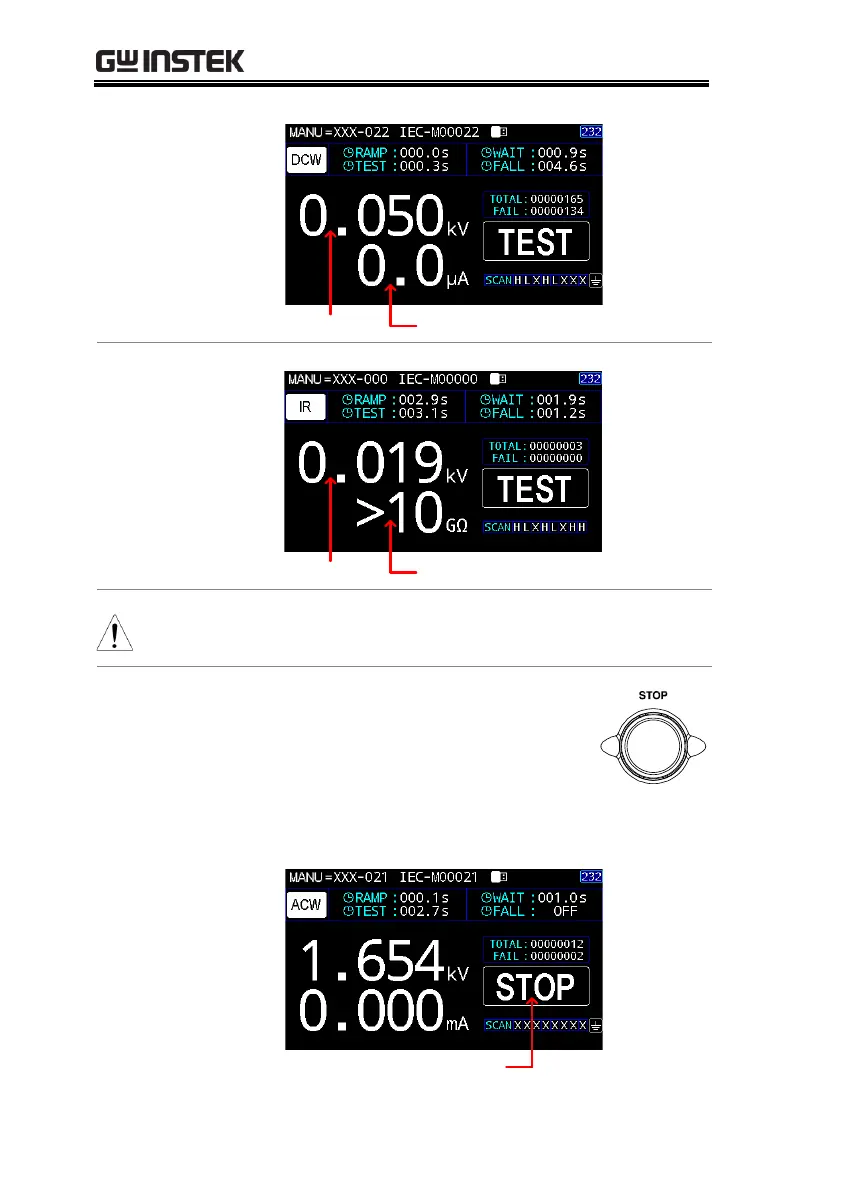

DCW Example
Test Voltage Measured Current
IR Example
Test Voltage Measured Resistance
Note
WAIT and FALL time only appear when user has
activated them. See page 61 and 48 for details.
Stop the Test
1. To stop the test at any time when it
is running, press the STOP button.
The test will stop immediately.
When the STOP button is pressed,
a judgment is not made and the
STOP status will be shown.
STOP status
