Intersecting rings

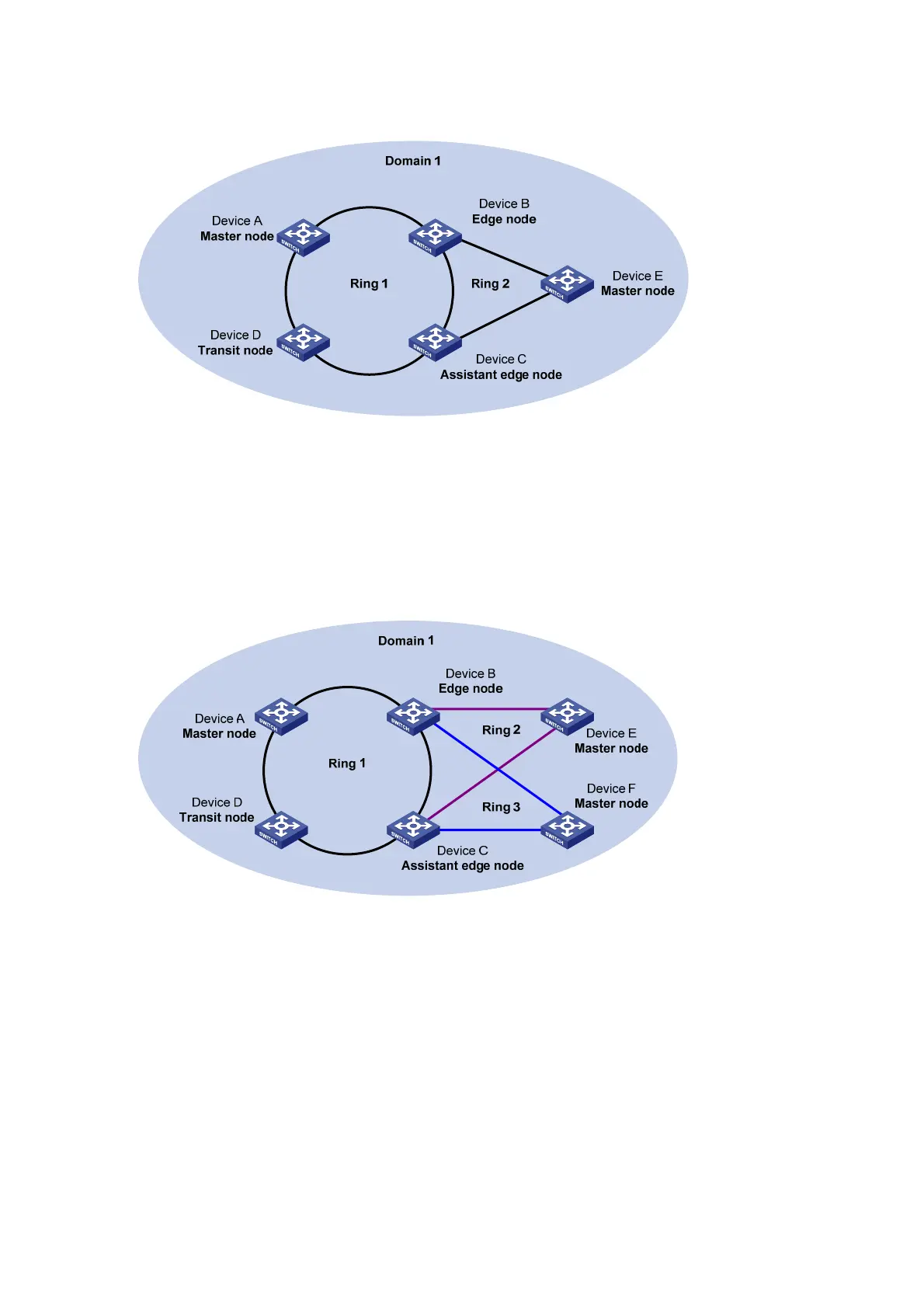

Figure 1-4 Intersecting rings
There are two or more rings in the network topology and two common nodes between rings. In this case,
you only need to define an RRPP domain, and set one ring as the primary ring and the other rings as
subrings.
Dual homed rings
Figure 1-5 Dual homed rings
There are two or more rings in the network topology and two similar common nodes between rings. In
this case, you only need to define an RRPP domain, and set one ring as the primary ring and the other
rings as subrings.
