DNS Proxy Configuration Example
Network requirements
z Specify Switch A as the DNS server of Switch B (the DNS client).
z Switch A acts as a DNS proxy. The IP address of the real DNS server is 4.1.1.1.
z Switch B implements domain name resolution through Switch A.

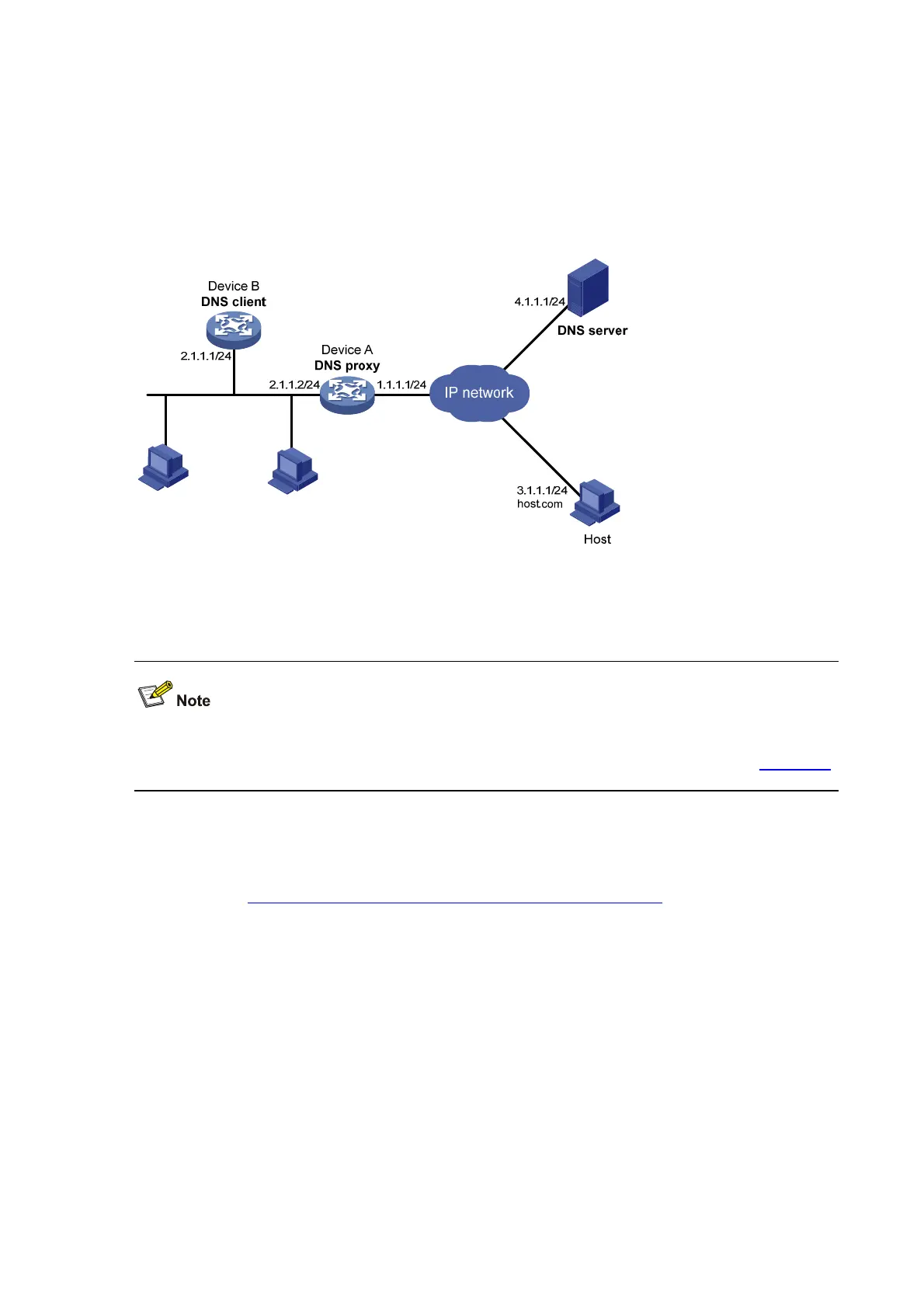

Figure 1-8 Network diagram for DNS proxy
Configuration procedure
Before performing the following configuration, assume that Switch A, the DNS server, and the host are
reachable to each other and the IP addresses of the interfaces are configured as shown in
Figure 1-8.
1) Configure the DNS server
This configuration may vary with different DNS servers. When a Windows server 2000 acts as the DNS
server, refer to
Dynamic Domain Name Resolution Configuration Example for related configuration
information.
2) Configure the DNS proxy
# Specify the DNS server 4.1.1.1.
<SwitchA> system-view
[SwitchA] dns server 4.1.1.1
# Enable DNS proxy.
[SwitchA] dns proxy enable
3) Configure the DNS client
# Enable the domain name resolution function.
<SwitchB> system-view
[SwitchB] dns resolve
