H3C S5120-EI Series - SSH Client Configuration Examples; When Switch Acts as Client for Password Authentication

1-19
Select Connection/SSH/Auth from the navigation tree. The following window appears. Click
Browse… to bring up the file selection window, navigate to the private key file and click OK.

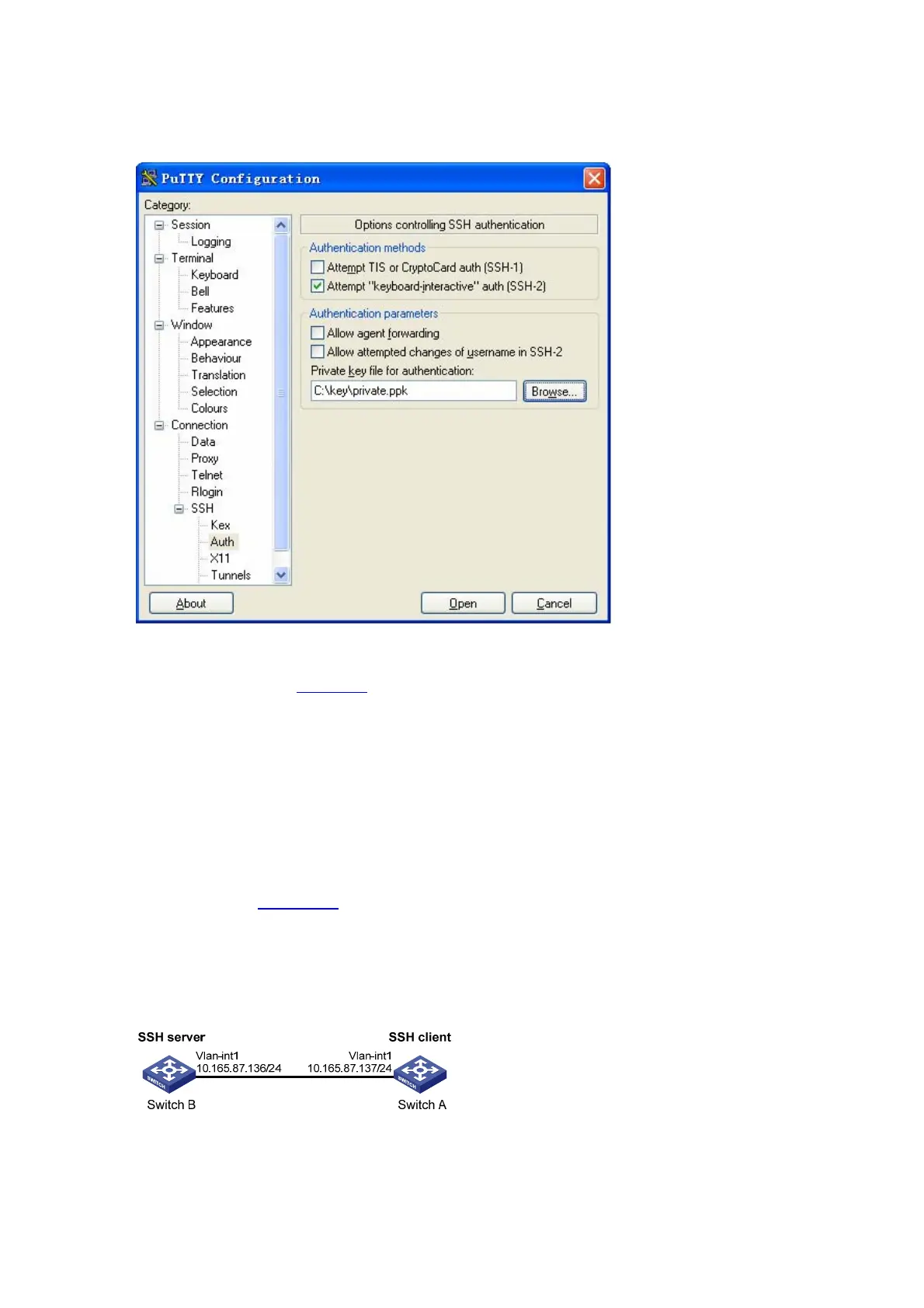

Figure 1-9 SSH client configuration interface 2)
In the window shown in
Figure 1-9, click Open. If the connection is normal, you will be prompted to enter
the username. After entering the correct username (client002), you can enter the configuration
interface.
SSH Client Configuration Examples
When Switch Acts as Client for Password Authentication
Network requirements
z As shown in Figure 1-10, Switch A (the SSH client) needs to log into Switch B (the SSH server)
through the SSH protocol.
z The username of the SSH client is client001 and the password is aabbcc. Password
authentication is required.
Figure 1-10 Switch acts as client for password authentication
Configuration procedure
1) Configure the SSH server
