1-14
Trap flag : No
Roll time : 0s
Number of neighbors : 1
Number of MED neighbors : 1
Number of CDP neighbors : 0
Number of sent optional TLV : 0
Number of received unknown TLV : 5
Port 2 [GigabitEthernet1/0/2] :
Port status of LLDP : Enable
Admin status : Rx_Only
Trap flag : No
Roll time : 0s
Number of neighbors : 0
Number of MED neighbors : 0
Number of CDP neighbors : 0
Number of sent optional TLV : 0
Number of received unknown TLV : 0
CDP-Compatible LLDP Configuration Example
Network requirements
z GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 of Switch A are each connected to a Cisco IP
phone.
z Configure voice VLAN 2 on Switch A. Enable CDP compatibility of LLDP on Switch A to allow the
Cisco IP phones to automatically configure the voice VLAN, thus confining their voice traffic within
the voice VLAN to be isolated from other types of traffic.
Network diagram

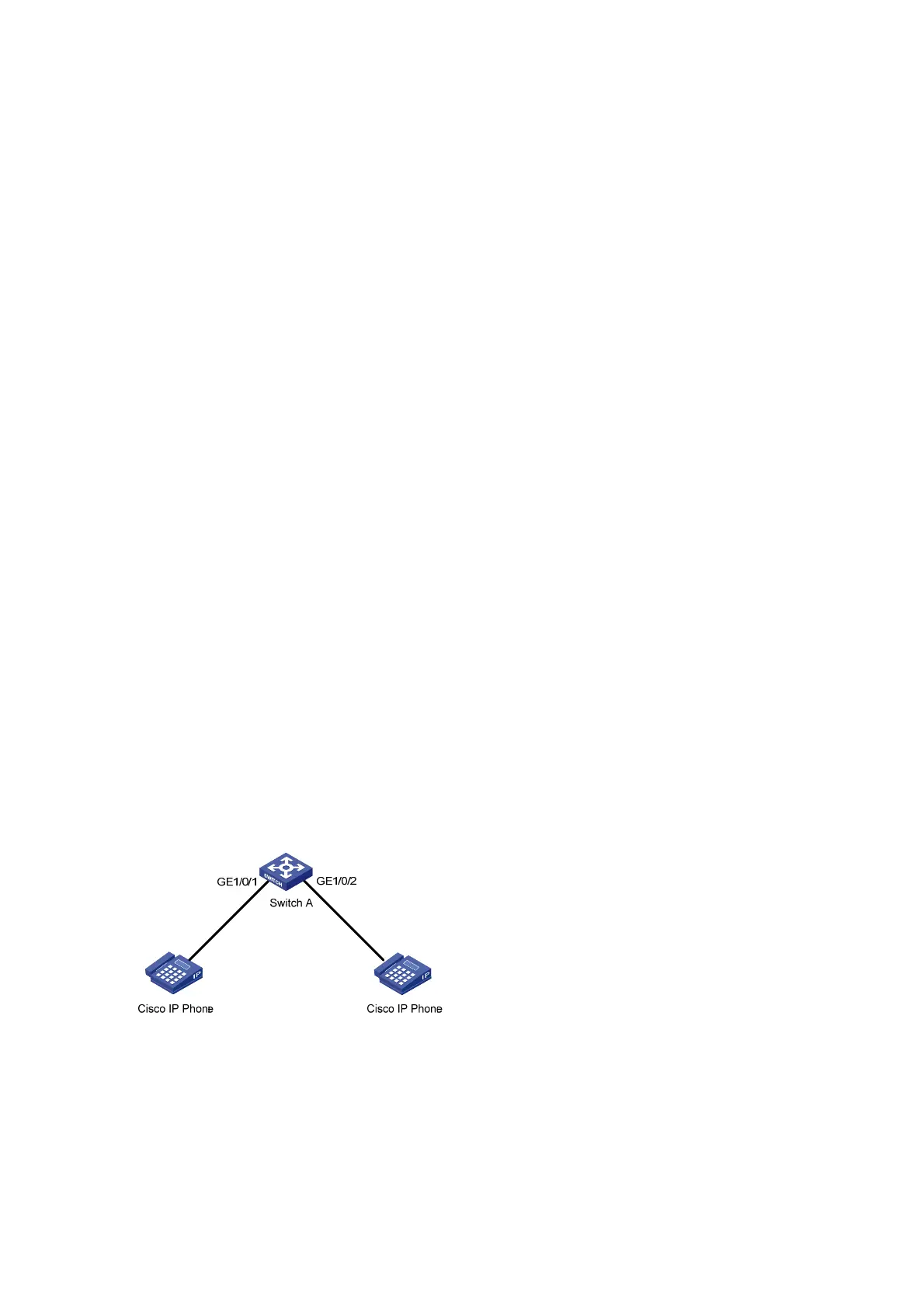

Figure 1-2 Network diagram for LLDP compatible with CDP configuration
Configuration procedure
1) Configure the voice VLAN on Switch A
# Create VLAN 2.
<SwitchA> system-view
[SwitchA] vlan 2
[SwitchA-vlan2] quit
