1-39
z Specify the IP address of the switch as 192.168.1.70
z Set both the shared keys for authentication and accounting packets to expert
z Select LAN Access Service as the service type
z Specify the ports for authentication and accounting as 1812 and 1813 respectively
z Select Extensible Protocol as the protocol type
z Select Standard as the RADIUS packet type

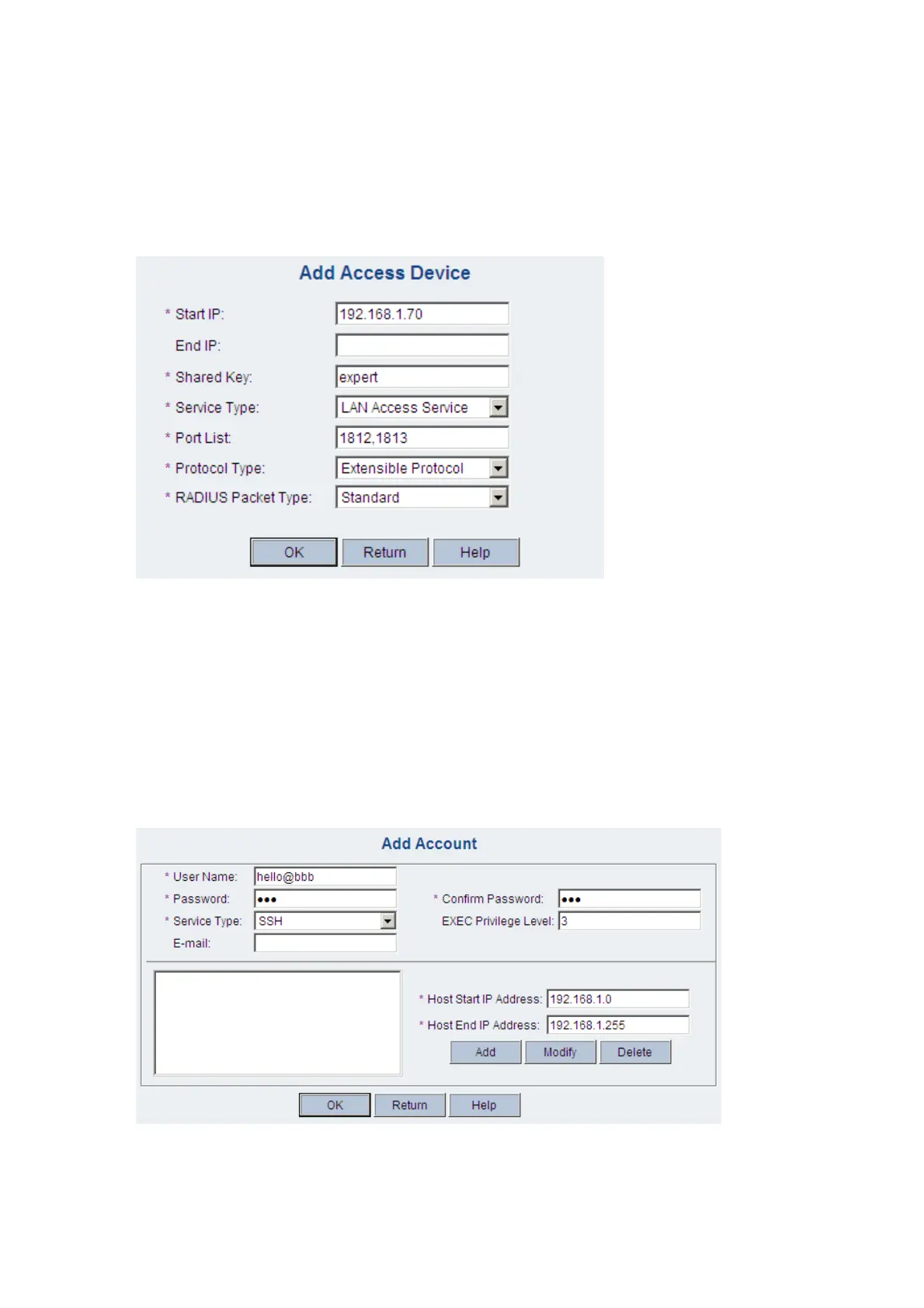

Figure 1-10 Add an access device
# Add a user for device management
From the navigation tree, select User Management > User for Device Management, and then in the
right pane, click Add to enter the Add Account window and perform the following configurations:
z Add a user named hello@bbb, and specify the password
z Select SSH as the service type
z Specify the IP address range of the hosts to be managed
Figure 1-11 Add an account for device management
2) Configure the switch
# Configure the IP address of VLAN interface 2, through which the SSH user accesses the switch.
