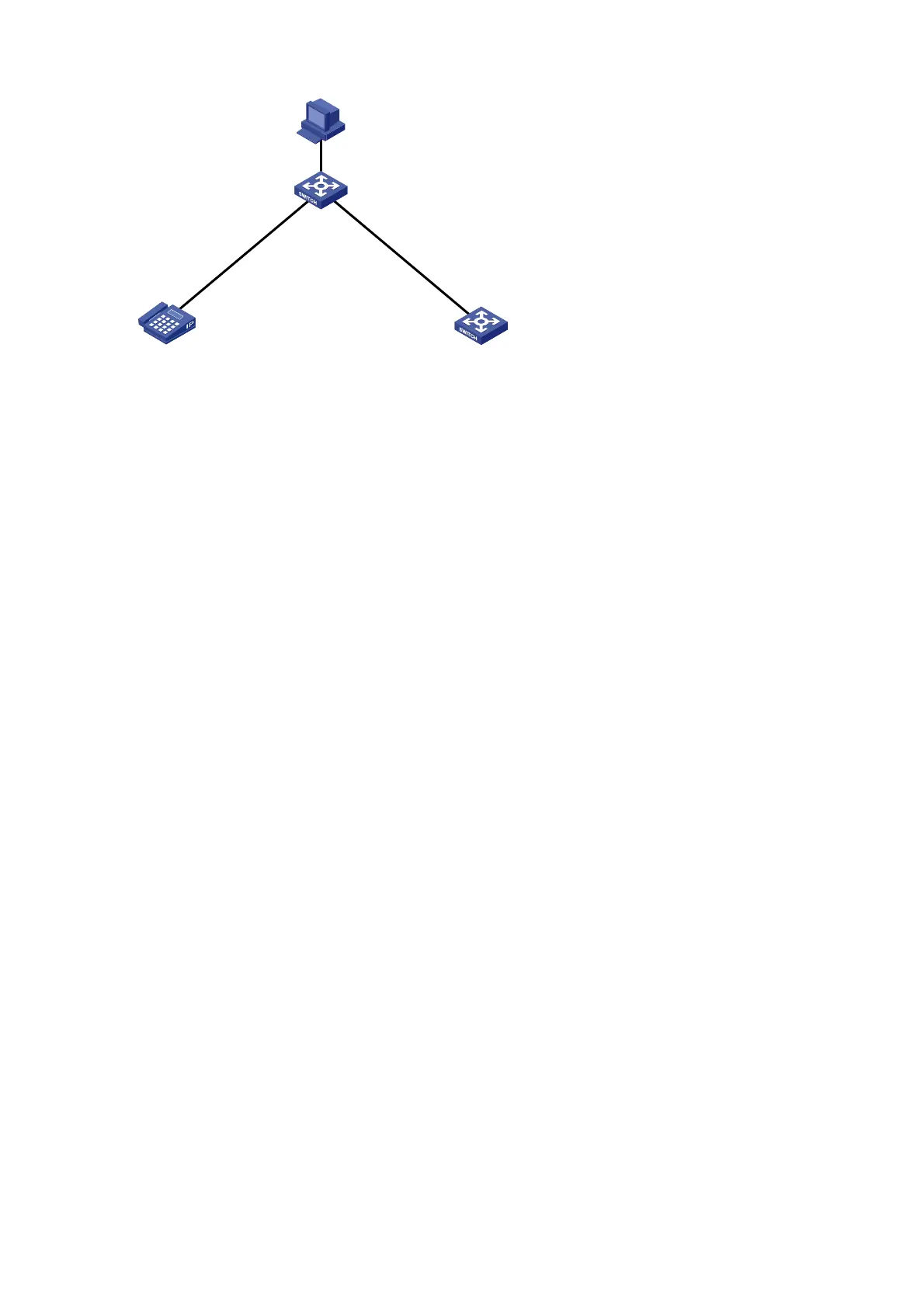

Figure 1-1 Network diagram for LLDP configuration
NMS
Switch A
Switch B
MED设备
GE1/0/1 GE1/0/2
GE1/0/1
Configuration procedure
1) Configure Switch A.
# Enable LLDP globally.
<SwitchA> system-view
[SwitchA] lldp enable
# Enable LLDP on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2, setting the LLDP operating mode to
Rx.
[SwitchA] interface gigabitethernet1/0/1
[SwitchA-GigabitEthernet1/0/1] lldp enable
[SwitchA-GigabitEthernet1/0/1] lldp admin-status rx
[SwitchA-GigabitEthernet1/0/1] quit
[SwitchA] interface gigabitethernet1/0/2
[SwitchA-GigabitEthernet1/0/2] lldp enable
[SwitchA-GigabitEthernet1/0/2] lldp admin-status rx
[SwitchA-GigabitEthernet1/0/2] quit
2) Configure Switch B.
# Enable LLDP globally.
<SwitchB> system-view
[SwitchB] lldp enable
# Enable LLDP on GigabitEthernet1/0/1, setting the LLDP operating mode to Tx.
[SwitchB] interface gigabitethernet1/0/1
[SwitchB-GigabitEthernet1/0/1] lldp enable
[SwitchB-GigabitEthernet1/0/1] lldp admin-status tx
[SwitchB-GigabitEthernet1/0/1] quit
3) Verify the configuration.
# Display the global LLDP status and port LLDP status on Switch A.
[SwitchA] display lldp status
Global status of LLDP : Enable
The current number of LLDP neighbors : 2
The current number of CDP neighbors : 0
LLDP neighbor information last changed time : 0 days, 0 hours, 4 minutes, 40 seconds
