5. Select an Output Multiplex and click Next>>.

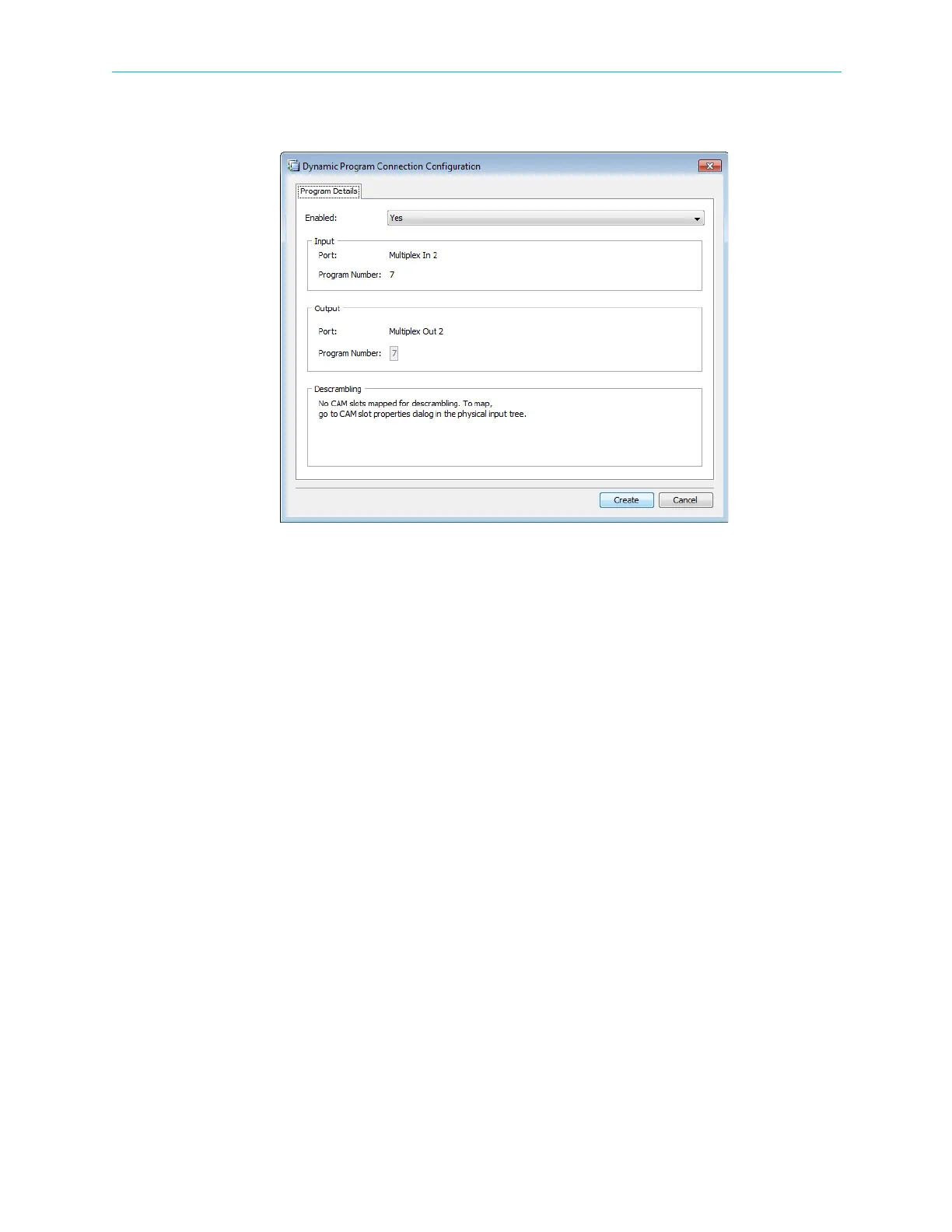

The Cross-Connect Editor dialog displays.
6. Set the required parameters:
❑ Enabled – Defines the operational status of the program.
❑ Input – Displays the name of the input physical port which receives the stream and
the number of the multiplex program.
❑ Output – Displays the name of the output physical port where the stream is routed
and the number of the multiplexed program routed to the port.
❑ Descrambling – Enables descrambling the program and selects the CAM used for the
descrambling.
7. Click Create to create the program cross-connect.
4.6.4.2 Setting Decoding Channel using the Connection Wizard
To set a Decoding Channel by using the Connection Wizard:
1. Click Connection Wizard on the EMS toolbar.
2. Select Input Program to Decoding Channel and click Next>>.
3. Select the Input Multiplex Port and click Next>>.
4. Select an input program and click Next>>.
5. Select the Decoding Channel and click Next>>.
The Decoding Channel Properties dialog displays, enabling you to review and configure
the decoder properties (for detailed description, refer to
4.5.4.7 Decoding Channel
Properties).
