208

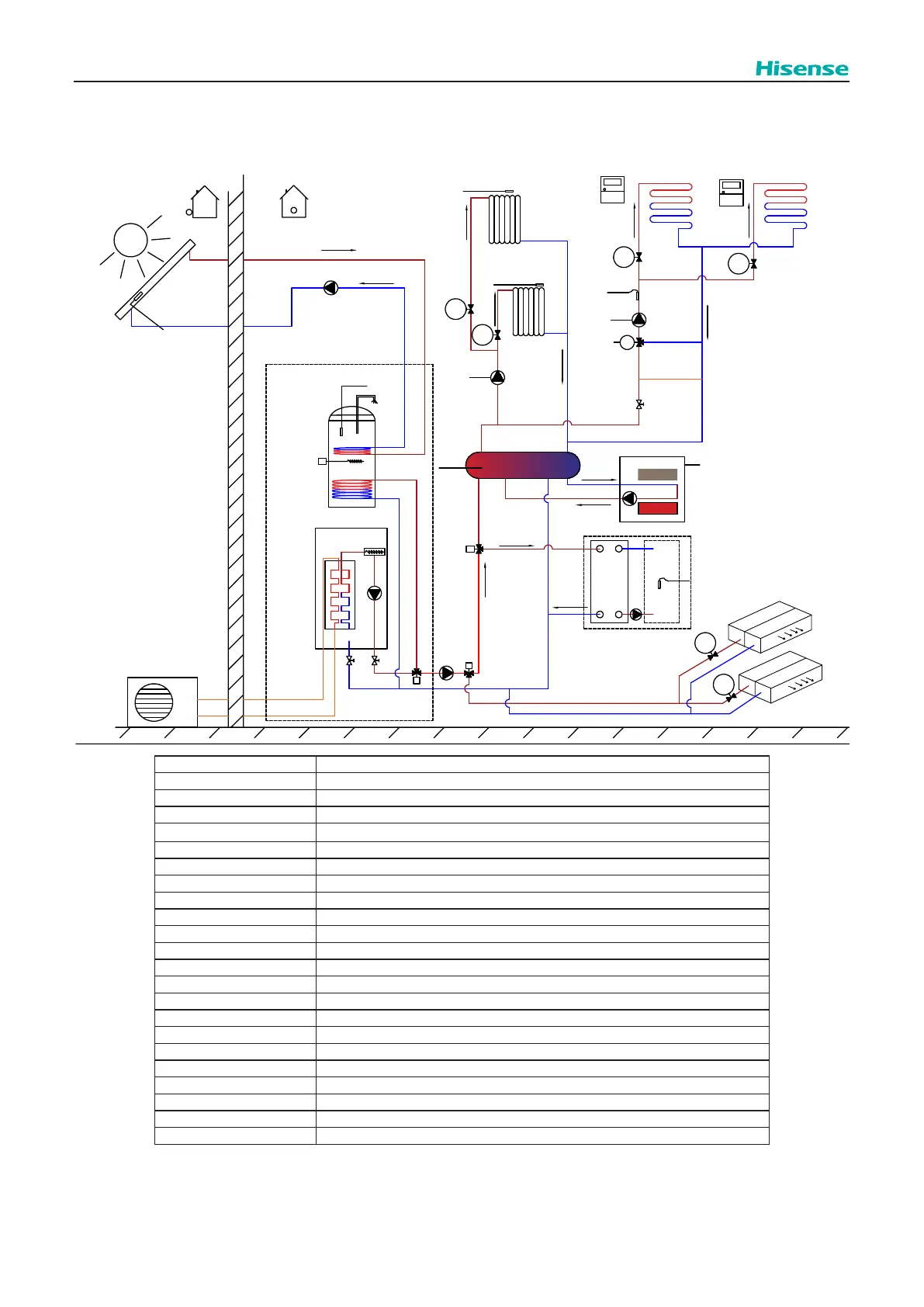

Control function
Mark Description
AEH Auxiliary electric heater in water circulation
DHW EH DHW Electric Heater in DHW tank
WP1 Water Pump1 between plate exchanger and hydraulic separator /installation
WP2 Water Pump2 used only on Water Cycle 2
WPc1 Water Pump c1 used only on Water Cycle 1
WP3 Water Pump3 from hydraulic separator to the distribution circuit
Vmix mixing valve to achieve a second temperature control on Water Cycle 2
3WV Cooling 3-way valve for cooling diverting to cooling fan coils
3WV DHW 3-way valve for DHW diverting to the sanitary DHW tank inner coil
3WV SWP 3-way valve for swimming pool diverting to the swimming pool heat exchanger
ACT1- ACT7 room actuator to achieve room temperature control
Cycle_1_room1…4 Room thermostat1…4 set on Water Cycle 1
Cycle_2_room1…4 Room thermostat1…4 set on Water Cycle 2
Room_amb1…7 Room temperature detected by auxiliary sensor
wired1…2 wired room controller1…2
Tiw Measured inlet water temperature
Tow Measured outlet water temperature
Tow2 Water Cycle 2 outlet water temperature
Tow3 Hot water temperature detection of hydraulic separator
TDHW DHW water temperature of DHW tank
Tswp Measured swimming pool water temperature
Tsolar Measured Hot water temperature of solar panels
NOTE
1. Automatic Bypass Valve or equivalent Bypass replacement should be tted after the pump in water circulation to prevent
pump pressure from climbing signicantly and ensure adequate ow.
(3) For Integra Unit with DHW tank combination, [Point of DHW & SWP] is [Before Hydr S] as default setting. The extra WP1
must be installed at beginning of water circulation just after 3WV DHW to o󰀨er total hydraulic head for all water circulation of
SWP/Space Heating/ Space Cooling.
O
utdoor Unit
●
Solar Panel
DHW Tank
T
DHW
DHW EH
Solar Pump
Indoor Unit
AEH
T
solar
3wv Cooling
Tiw
Tow
WP2
Tow2
M
Room_amb1
Room_amb2
ACT1
ACT2
3wv DHW
Boiler
signal
Tow3
ACT3
Vmix
WP1
WP1
Wired1
Wired2
ACT4
cycle_1_room_1
cycle_1_room_2
cycle_2_room_1
cycle_2_room_2
Hydraulic Separator
A
C
T
1
A
C
T
2
Fan Coil
cycle_1_room_1
cycle_1_room_2
Swimming
Pool
3wv SWP
SWP
Pump
SWP
HX
Tswp
WPc1
Integra Unit
