Control function
Switch
ON/OFF
Thermo
ON/OFF
2min
WP1
ON
OFF
ON
OFF
ON
OFF
WP3
ON
OFF

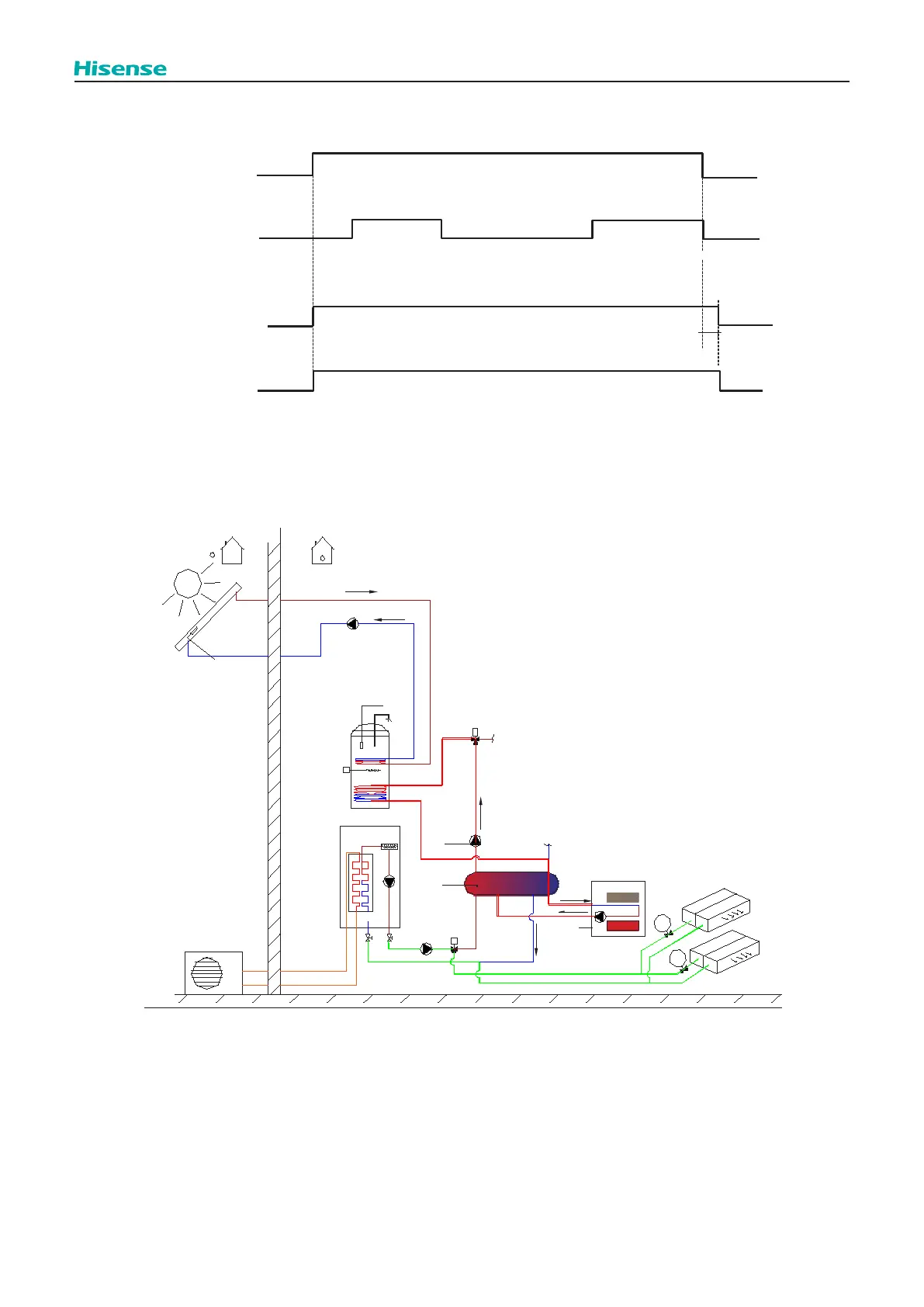

Space cooling
NOTE:
1. WP3 is always OFF during space cooling when DSW5-2 is OFF, in this situation cooling water circulation will not pass
through hydraulic separator.
O
utdoor Unit
Solar Panel
D HW Tank
T
DHW
D HW EH
Solar Pump
Indoor Unit
AEH
T
solar
3w v C ooling
T iw
T ow
3wv DHW
Boiler
signal
T ow3
W P3
W P1
W P1
H ydr aulic Sep ara tor
F an Coil
cycle_1_room_1
cycle_1_room_2
ACT1
ACT2
2. WP1 and WP3 has 2 minutes or more of overrun after requiring OFF depending on outlet water temperature.
3. WP1 is always OFF when Boiler works as replacement source and heat pump stop working in Emergency operation
(referring to 10.1.3.2), HP Block operation (referring to10.9.5) or Boiler working mode of [Alternative] (referring to 10.6.) .
