464
Hi-Therma Monobloc System (AHZ-044/080HCDS1)

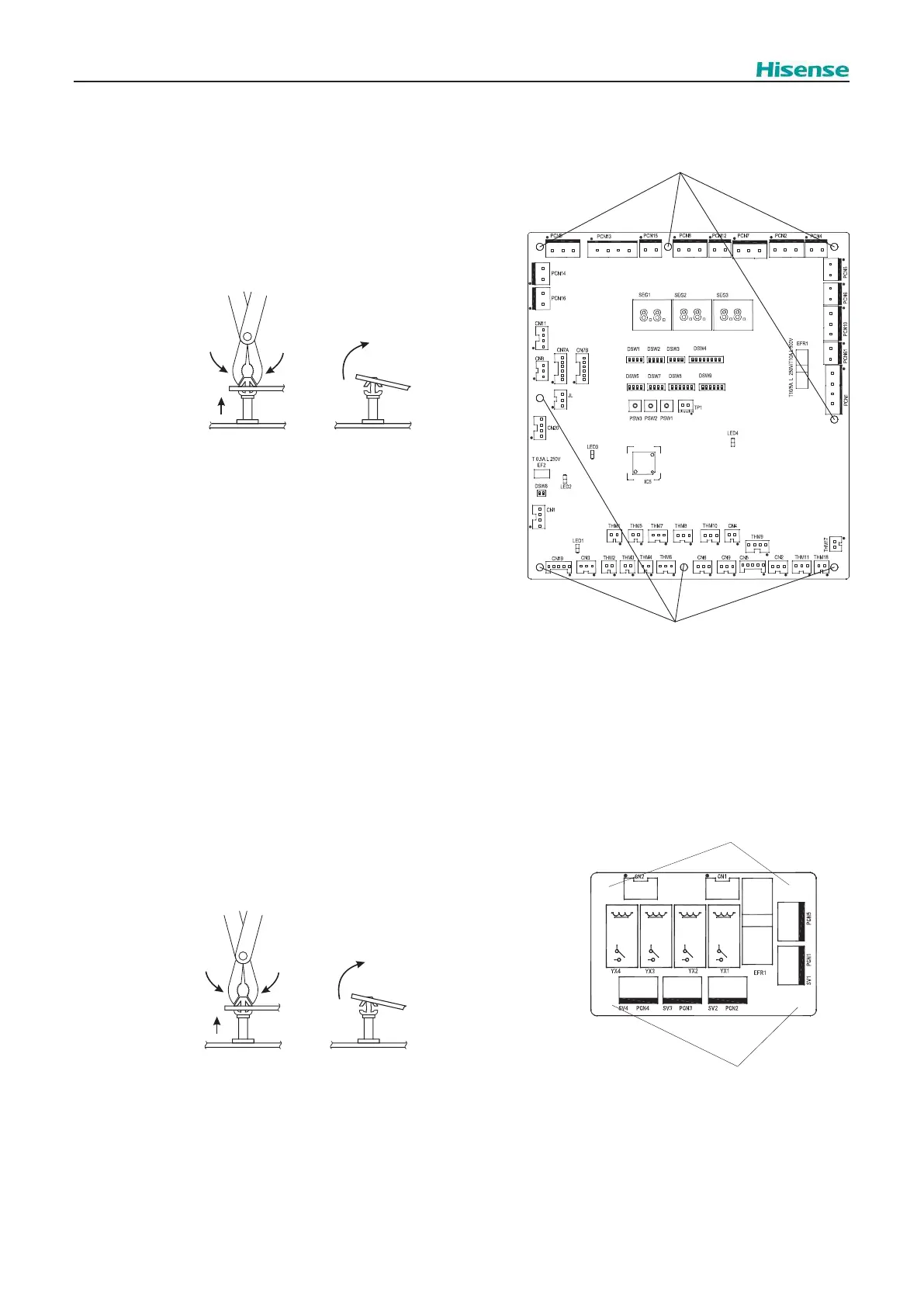

2.4.7.4.1 Removing the PCB1
To Remove the PCB1, the following operations should be done:
 Remove the service cover, as explained in “2.3.1.2 Removing the
service cover”
 Remove the electrical box cover, as explained in “2.3.1.3 Removing
the electrical box cover”
1. Remove all the connectors connected to the PCB1.
2. 
Plastic holders (x8)
3. Remove the PCB1. If necessary, replace the PCB1 with a new
one proceeding in reverse way than disassembling.
Plastic holders
Plastic holders
2.4.7.4.2 Removing the PCB3
To Remove the PCB3, the following operations should be done:
 Remove the service cover, as explained in “2.3.1.2 Removing the Service
cover”
 Remove the electrical box cover, as explained in “2.3.1.3 Removing the
electrical box cover”
1. Remove all the connectors connected to the PCB3.
2. 
Plastic holders (x4)
3. Remove the PCB3. If necessary, replace the PCB3 with a new
one proceeding in reverse way than disassembling.
Plastic holders
Plastic holders
○
○
○
○
