465
Hi-Therma Monobloc System (AHZ-044/080HCDS1)

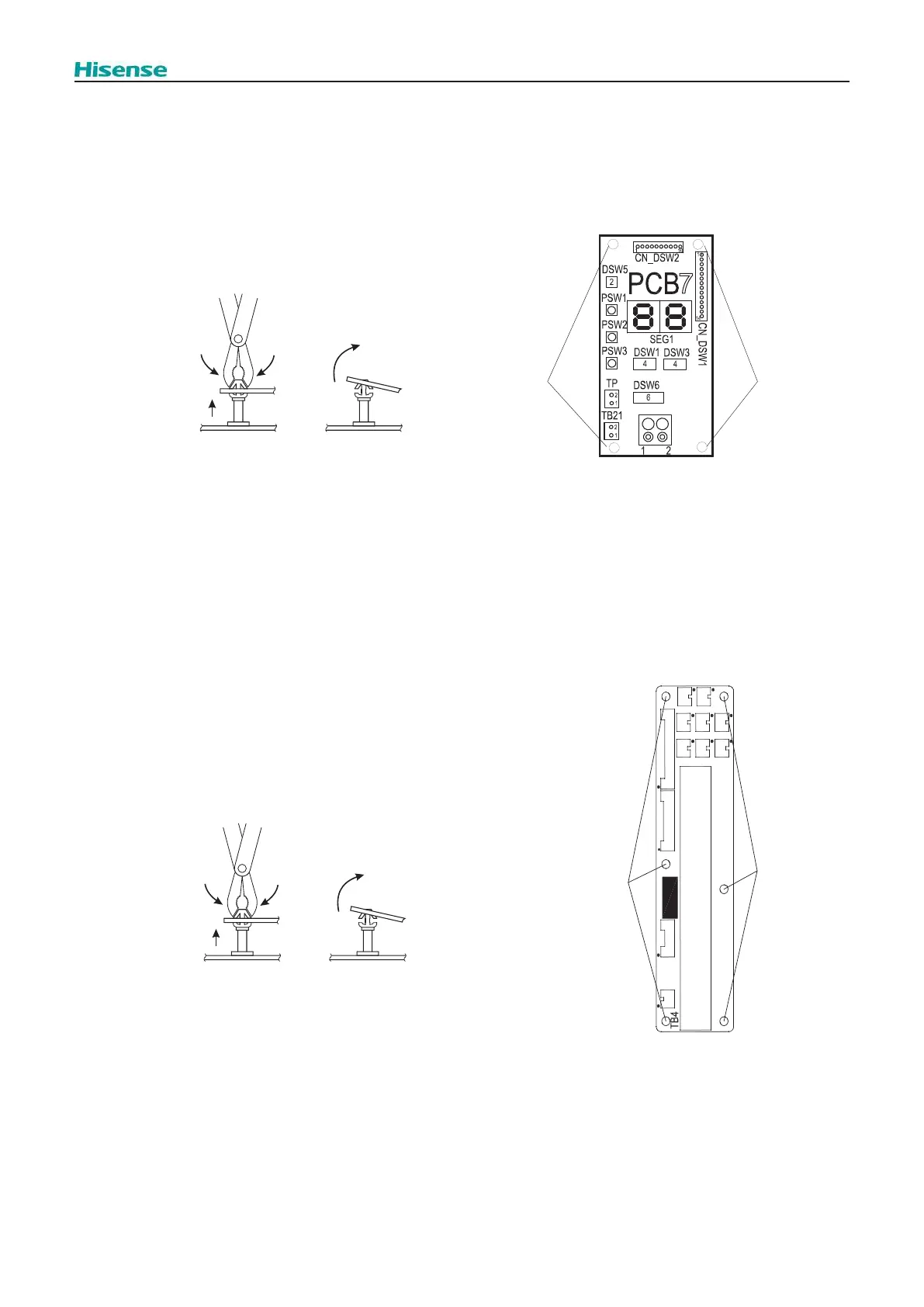

2.4.7.4.3 Removing the PCB7
To Remove the PCB7, the following operations should be done:
 Remove the service cover, as explained in “2.3.1.1 Removing the
Service cover”
 Remove the electrical box cover, as explained in “2.3.1.3 Removing
the electrical box cover”
1. Remove all the connectors connected to the PCB7.
2. 
Plastic holders (x4)
3. Remove the PCB7. If necessary, replace the PCB7 with a new
one proceeding in reverse way than disassembling.
3. Remove the PCB4. If necessary, replace the PCB4 with a new
one proceeding in reverse way than disassembling.
7
Plastic holders
Plastic holders
2.4.7.4.4 Removing the PCB4
To Remove the PCB4, the following operations should be done:
 Remove the service cover, as explained in “2.3.1.2 Removing the service cover”.
 Remove the electrical box cover, as explained in “2.3.1.3 Removing the electrical box
cover”
1. Remove all the connectors connected to the PCB4.
2. 
Plastic holders (x6)
Plastic holders
Plastic holders
