467
Hi-Therma Monobloc System (AHZ-044/080HCDS1)

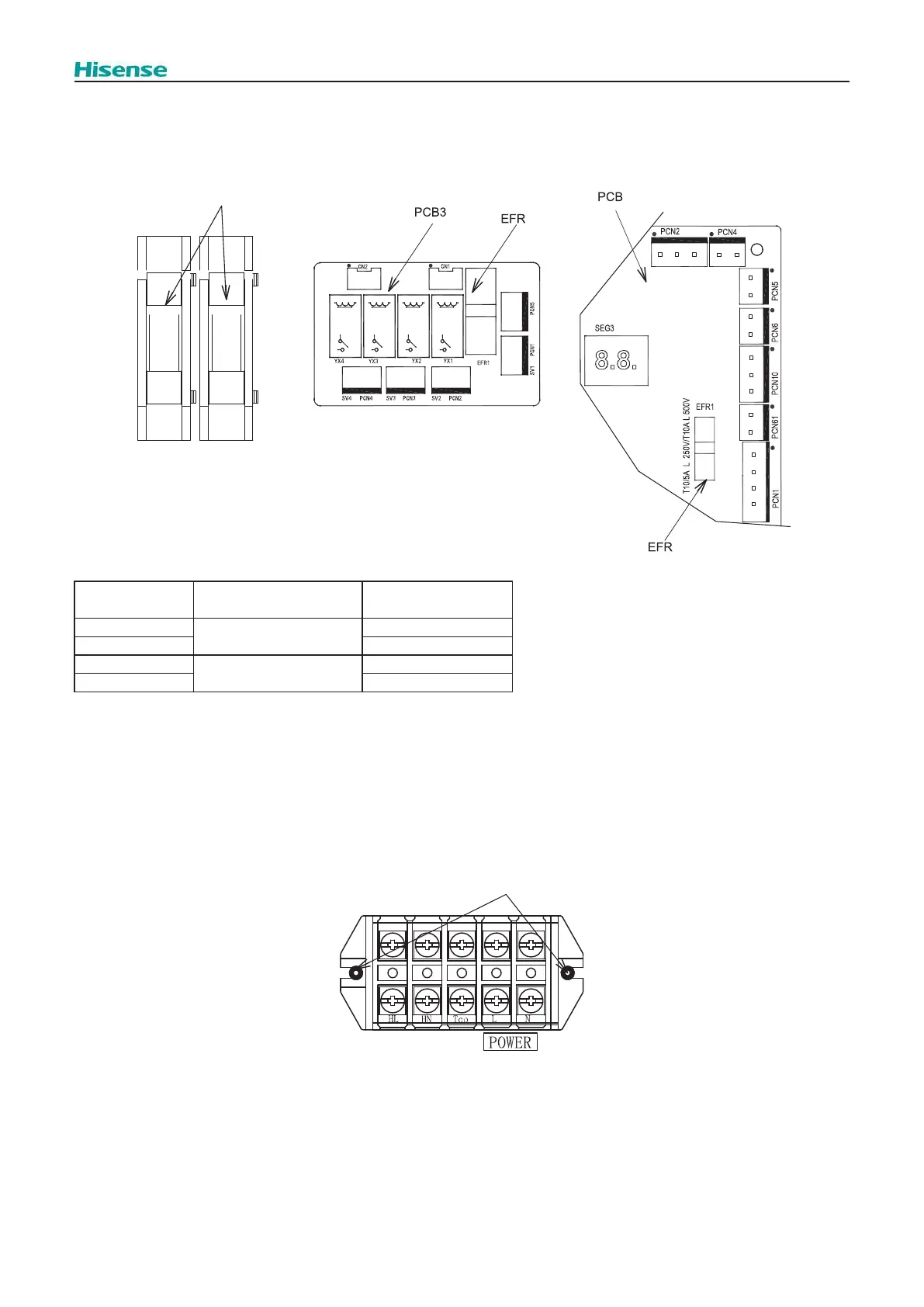

2.4.7.4.7 Replacement of the fuses (EF2~3,EFR,EFR1)
 Remove the service cover as explained in chapter “2.3.1.2 Removing the Service cover”
 Remove the electrical box cover as explained in chapter “2.3.1.3 Removing the Electrical box cover”.
1. Once the broken fuse is detected, pull it from its placement.
Fuses
EF2
EF3
○
○
○
○
1
1
Table of fuses
Fuse
Dimensions (Ø x L)
(mm)
Rated current
EFR
5.2 x 20
10A
EFR1 10A
EF3
10.3 x 38
25A
EF4 25A
2.4.7.4.8 Removing the terminal board (TB1)
 Remove the service cover as explained in “2.3.1.2 Removing the service cover”
 Remove the Electrical box cover, as explained in “2.3.1.3 Removing the Electrical Box cover”
1. Remove all the cables connected to the terminal board.
2. 
Screws
