HONDA

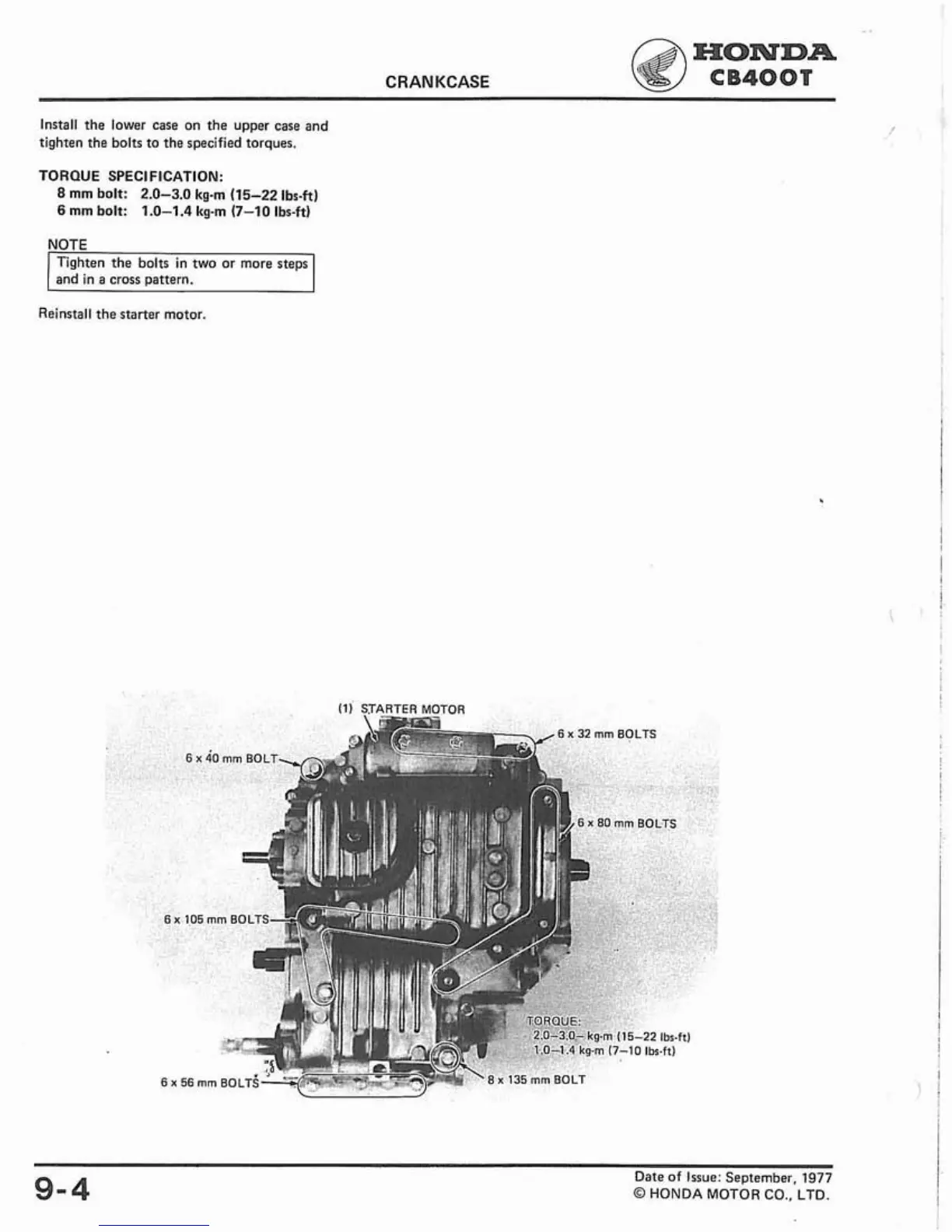

CRANKCASE CB400T
Install the lower case on the upper case and
tighten the bolts to the specified torques.
TORQUE SPECIFICATION:
8 mm bolt: 2.0-3.0 kg-m (15-22 lbs-ft)
6 mm bolt: 1.0-1.4 kg-m (7-10 lbs-ft)
NOTE
Tighten the bolts in two or more steps
and in a cross pattern.
Reinstall the starter motor.
9-4
Date of Issue: September. 1977
@ HONDA MOTOR CO., LTD.
