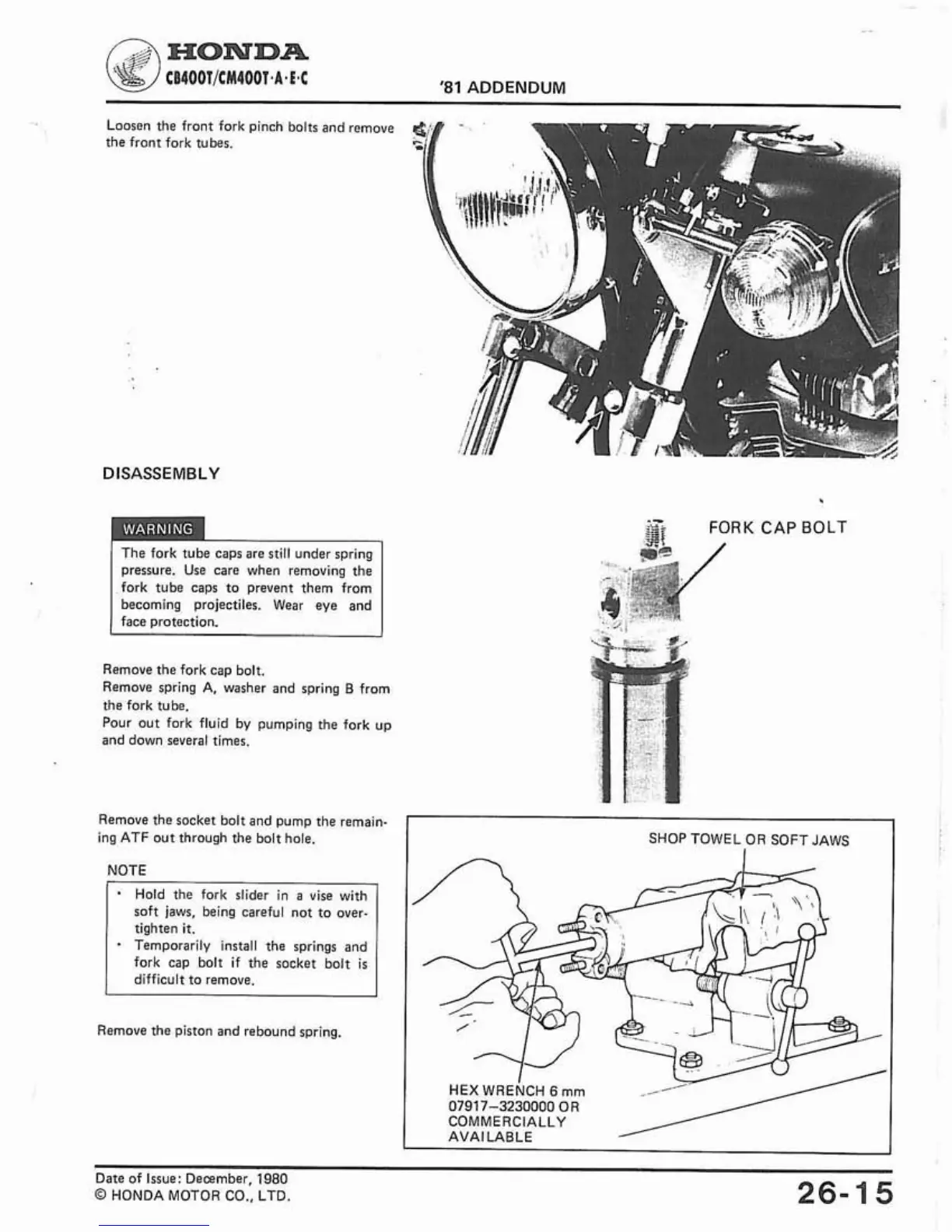

HONDA
C84QQl/CM4QQT-A~E~C
'81
ADDENDUM
Loosen the front fork pinch bolts and remove
the front fork tubes.
DISASSEMBLY
The fork tube caps are
still
under spring
pressure. Use care when removing the
fork tube caps to prevent them from
becoming projectiles. Wear eye and
face protection.
Remove the fork cap bolt.
Remove spring A, washer and spring
B
from
the fork tube.
Pour out fork fluid by pumping the fork up
and down several times.
soft jaws, being careful not to over-
tighten
it.
Temporarily install the springs and
fork cap bolt if the socket bolt
is
Remove the socket bolt and pump the remain-
Remove the piston and rebound spring.
ing ATF out through the bolt hole.
07917-3230000
OR
COMMERCIALLY
AVAl LABLE
SHOP TOWEL OR SOFT JAWS
Date of Issue: December,
1980
o
HONDA
MOTOR
CO.,
LTD.
26-15
