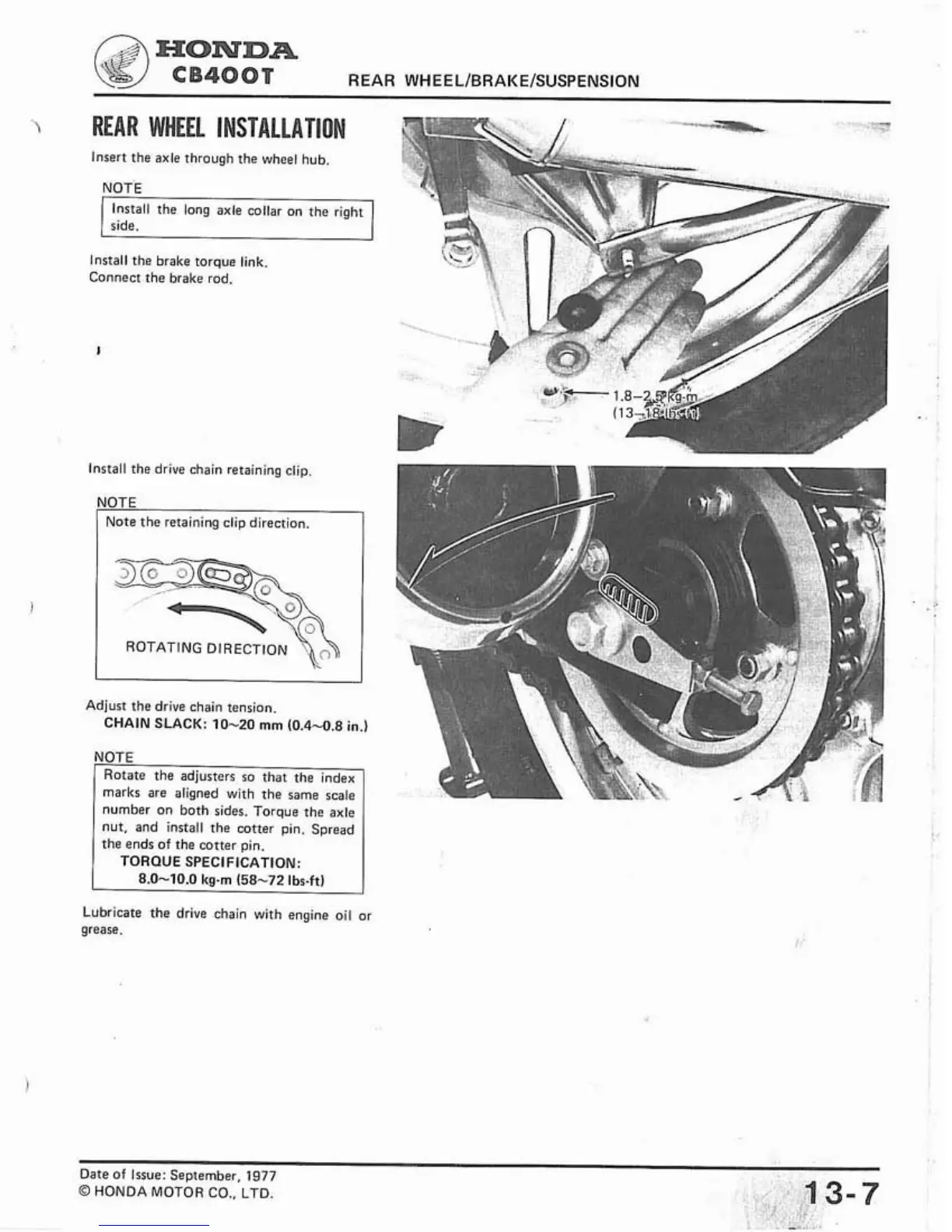

REAR WHEEL INSTALLATION
Insert the axle through the wheel hub.
NOTE
Install the long axle collar on the right
side.
Install the brake torque link
Connect the brake rod.
Install the drive chain retaining clip.
NOTE
Note the retaining clip direction.
Adjust the drive chain tension.
CHAIN SLACK:
10-20 rnrn (0.44.8 in.)
Rotate the adjusters so that the index
marks are aligned with the same scale
number on both sides. Torque the axle
nut, and install the cotter pin, Spread
the ends of the cotter pin.
TORQUE SPECIFICATION:
r
8.0-10.0 kg-rn (58-72 lbs-ft)
Lubricate the drive chain with engine oil or
grease.
