HONDA
FRONT WHEELIBRAKEISUSPENSION
CB400T

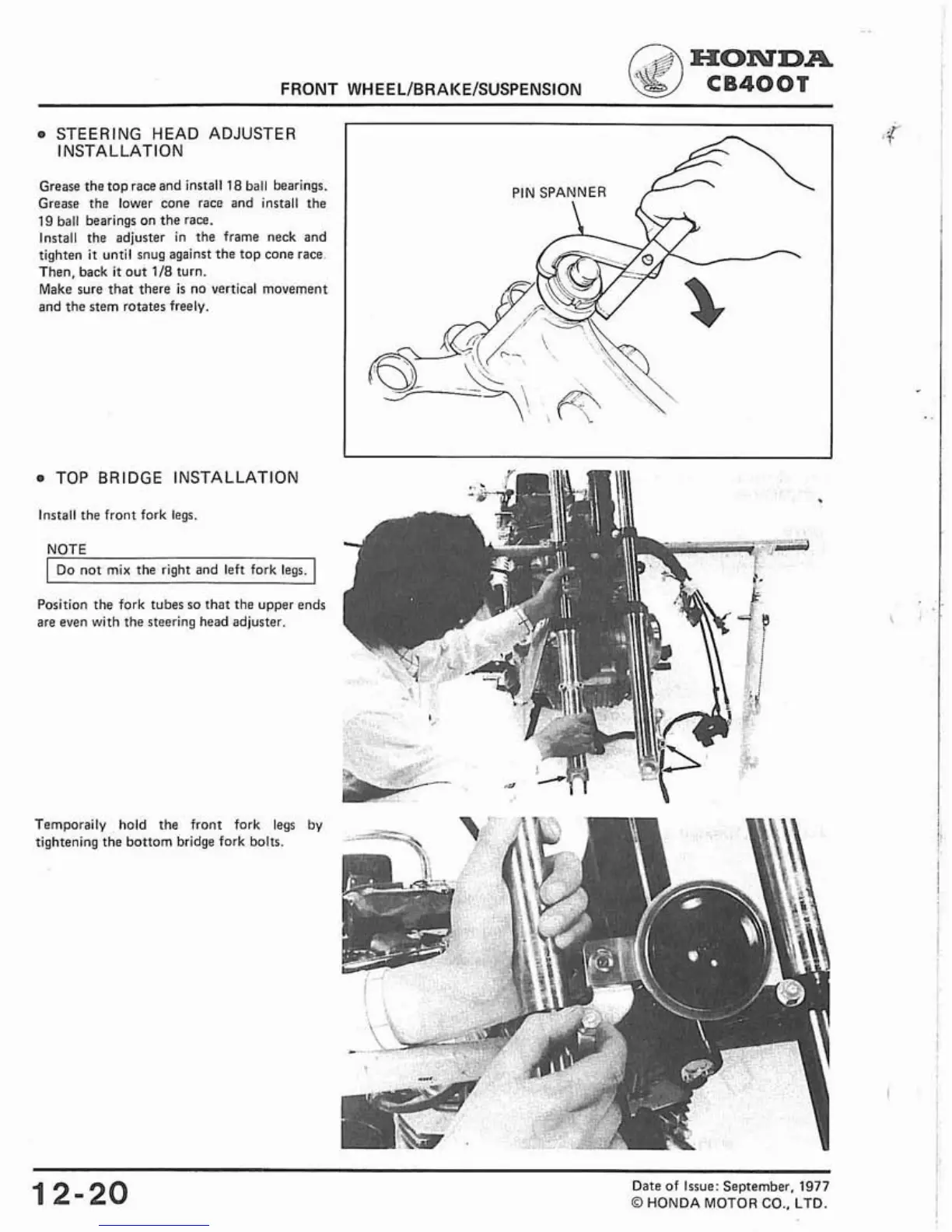

STEERING HEAD ADJUSTER
INSTALLATION
Grease thetop race and install 18 ball bearings.
Grease the lower cone race and install the
19 ball bearings on the race.
Install the adjuster in the frame neck and
tighten
it
until snug against the top cone race.
Then. back
it
out 118 turn.
Make sure that there is no vertical movement
and the stem rotates freely.
TOP BRIDGE INSTALLATION
Install the front fork legs
NOTE
Do not mix the right and
left
fork legs.
Position the fork tubes so that the upper ends
are even with the steering head adjuster.
Temporaily hold the front fork legs by
tightening the bottom bridge fork bolts.
12-20
Date of Issue: September, 1977
Q
HONDA MOTOR
CO.,
LTD.
