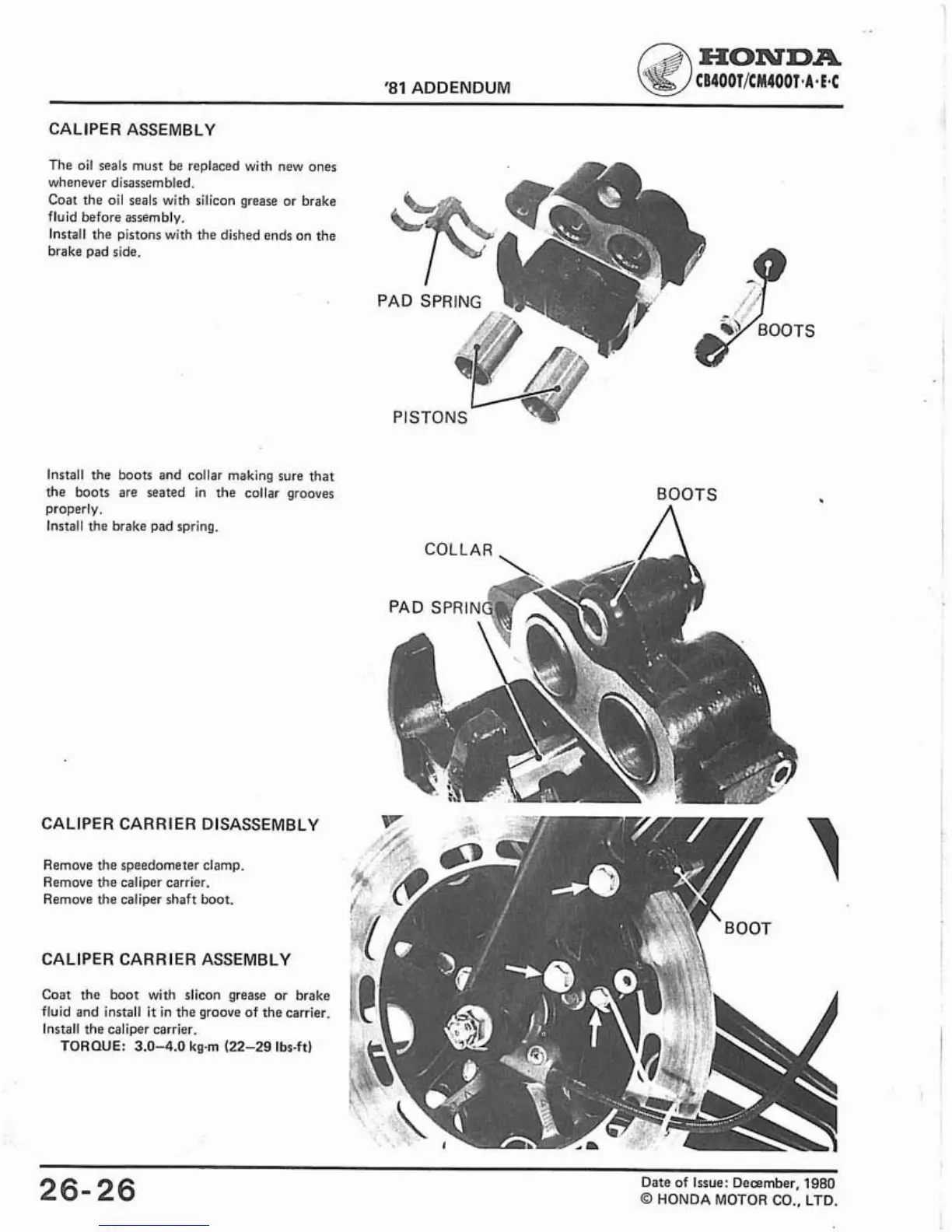

CALIPER ASSEMBLY
The oil seals must be replaced with new ones
whenever disassembled.
Coat the oil seals with silicon grease or brake
fluid before assembly.
Install the pistons with the dished ends on the
brake pad side.
p,
PISTONS %?,
Install the boots and collar making sure that
the boots are seated in the collar grooves
properly.
Install the brake pad spring.
BOOTS
CALIPER CARRIER DISASSEMBLY
Remove the speedometer clamp.
Remove the caliper carrier.
Remove the caliper shaft boot.
CALIPER CARRIER ASSEMBLY
Coat the boot with slicon grease or brake
fluid and install it in the groove of the carrier.
Install the caliper carrier.
TORQUE: 3.0-4.0 kgm (22-29 lbs-ft)
26-26
