HONDA
'81
ADDENDUM Cb40QT/CM400T~A~E~C

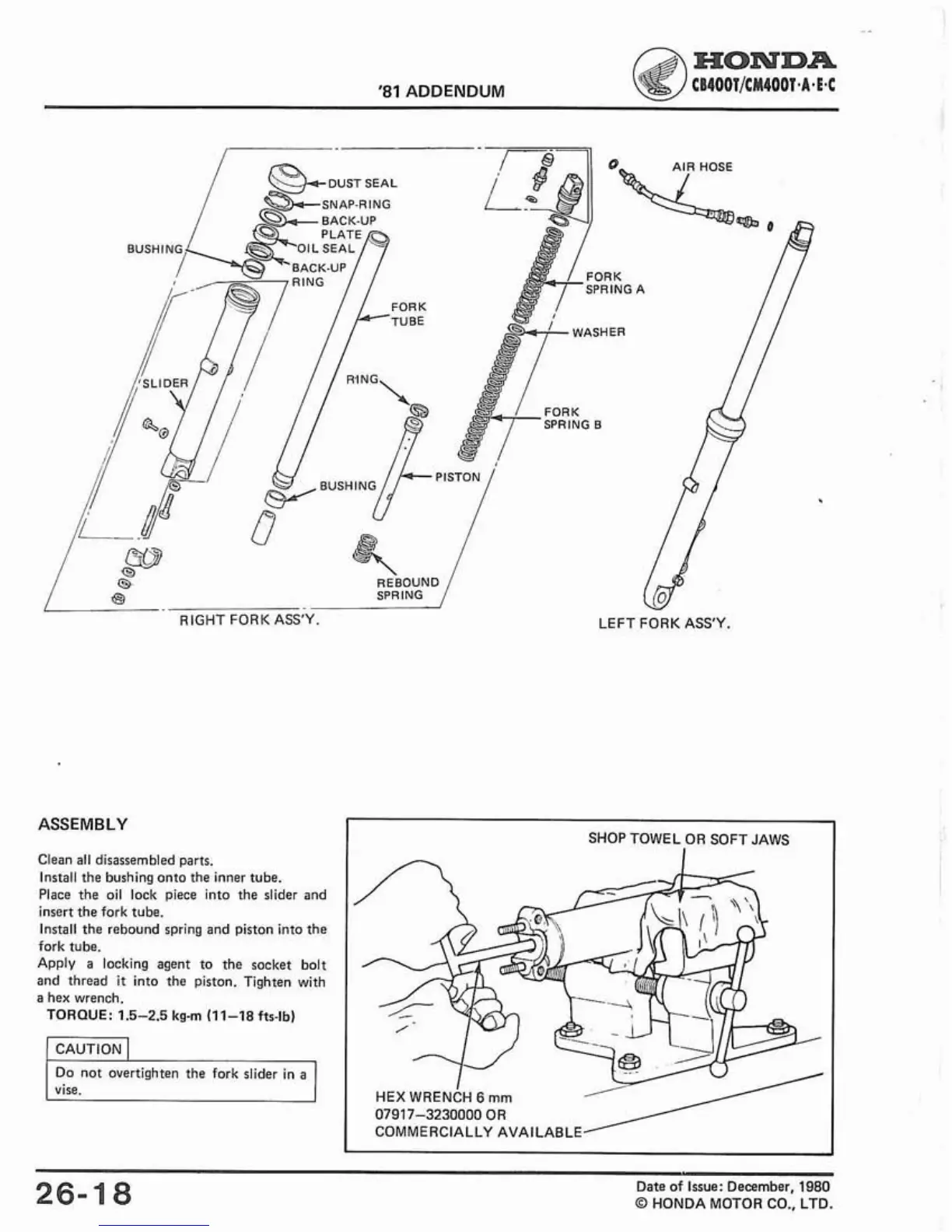

ASSEMBLY
Clean all disassembled parts.
Install the bushing onto the inner tube.
Place the oil lock piece into the slider and
insert the fork tube.
Install the rebound spring and piston into the
fork tube.
Apply a locking agent to the socket bolt
and thread
it
into the piston. Tighten with
a hex wrench.
TORQUE: 1.5-2.5
kg-m
(11-18fts-lb)
Do not overtighten the fork slider in
a
vise.
SHOP TOWEL OR SOFT JAWS
07917-3230000 OR
COMMERCIALLY AVAILABLE
26-18
Date of Issue: December, 1980
O
HONDA MOTOR CO., LTD.
