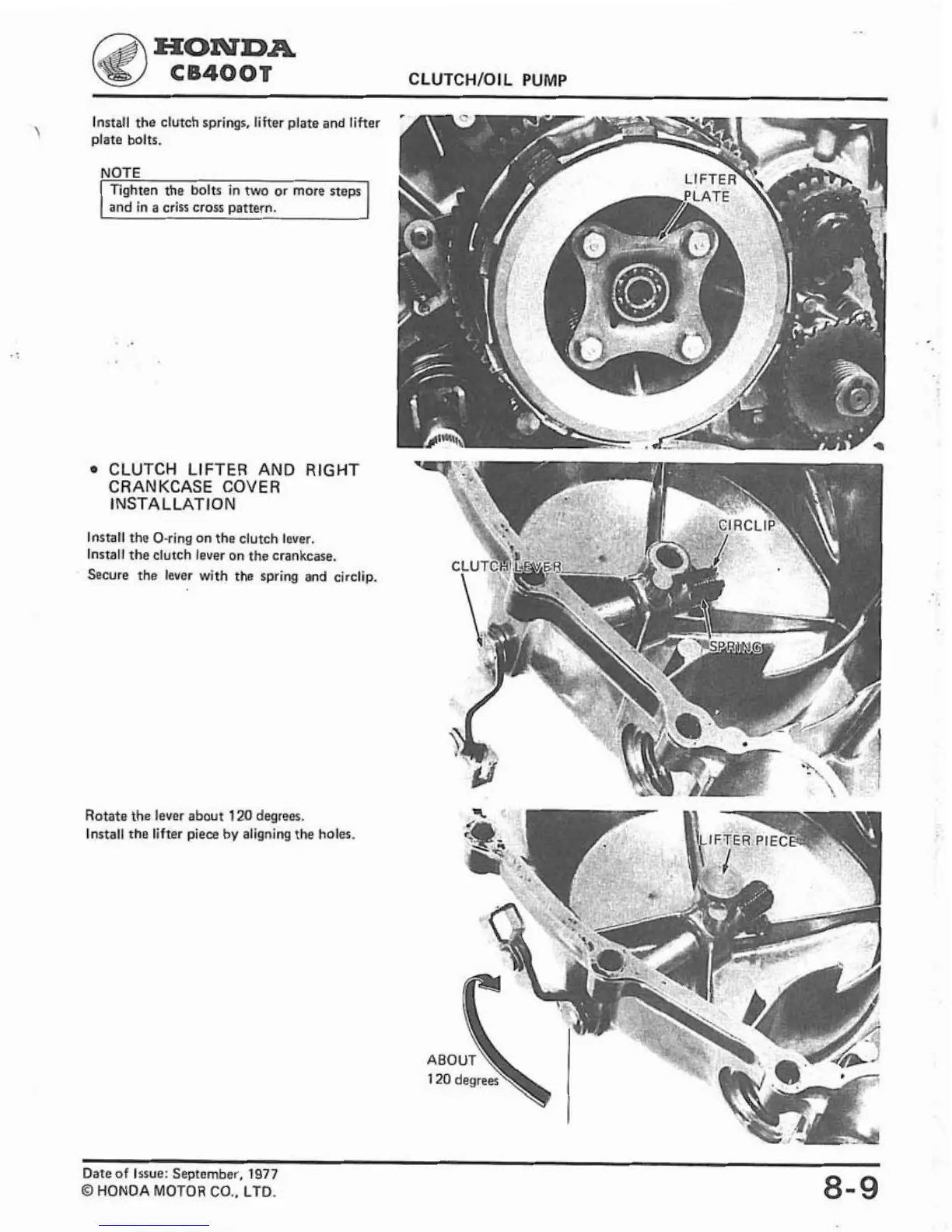

HONDA
CB400T
CLUTCHIOIL PUMP
Install the clutch springs, lifter plate and lifter
plate bolts.
NOTE
~.
.-
Tighten the bolts in two or more steps
and in a criss cross pattern.
CLUTCH LIFTER AND RIGHT
CRANKCASE COVER
INSTALLATION
Install the O-ring on the clutch lever.
Install the clutch lever on the crankcase.
Secure the lever with the spring and
circlip.
Rotate the lever about
120
degrees.
Install the lifter piece by aligning the holes.
Date of
Issue: September,
1977
HONDA MOTOR CO., LTD.
8-9
