Honda CM400A - Right Crankcase Cover Removal

. .
HONDA

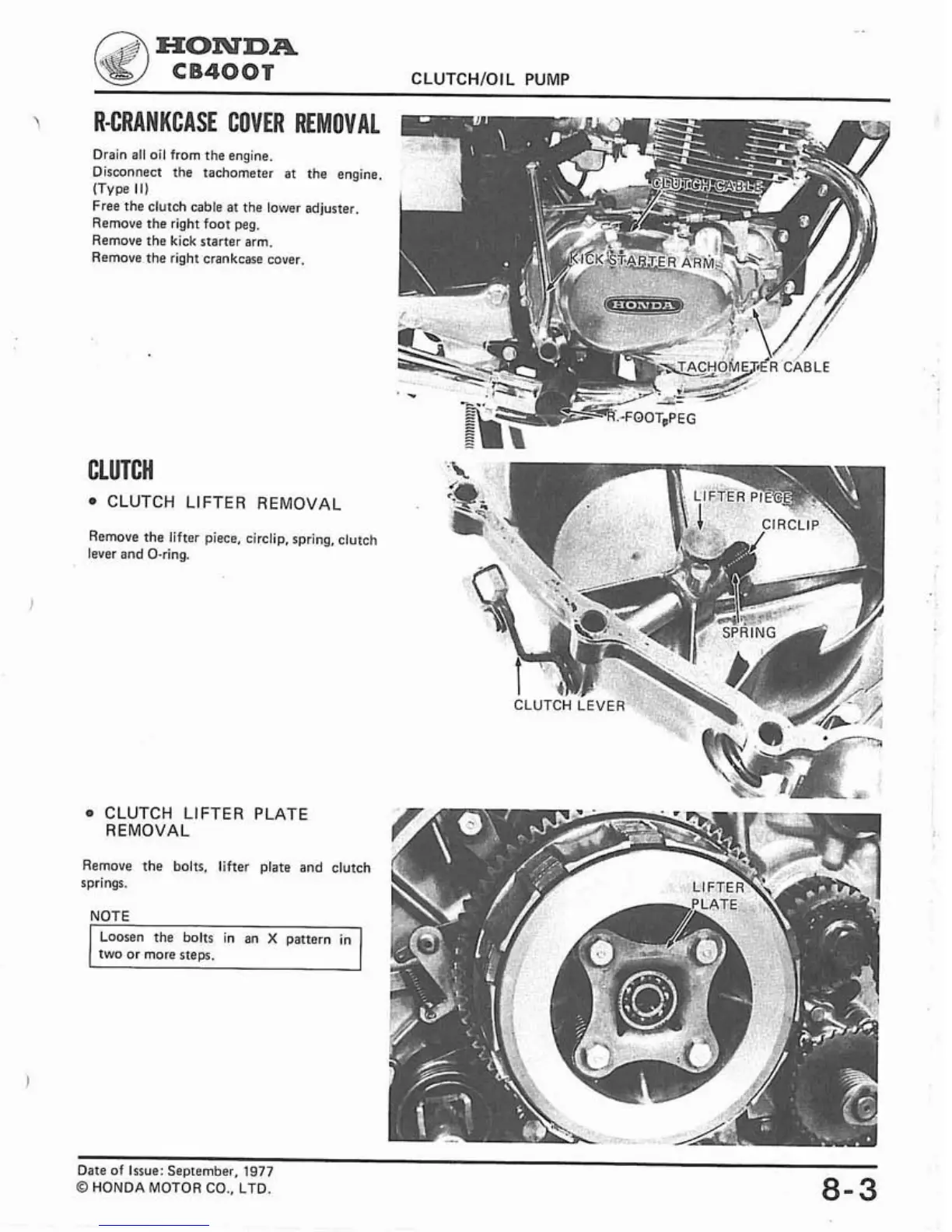

CB400T CLUTCHIOIL PUMP
R-CRANKCASE COVER REMOVAL
Drain all oil from the engine.
Disconnect the tachometer at the engine.
(Type Ill
Free the clutch cable at the lower adjuster.
Remove the right foot peg.
Remove the kick starter arm.
Remove the right crankcase cover.
CLUTCH
CLUTCH LIFTER REMOVAL
Remove the lifter piece, circlip, spring, clutch
lever and O-ring.
CLUTCH LIFTER PLATE
REMOVAL
Remove the bolts, lifter plate and clutch
springs.
NOTE
Loosen the bolts in an
X pattern in
two or more steps.
Date of
Issue: September, 1977
@ HONDA MOTOR CO., LTD.
8-3
