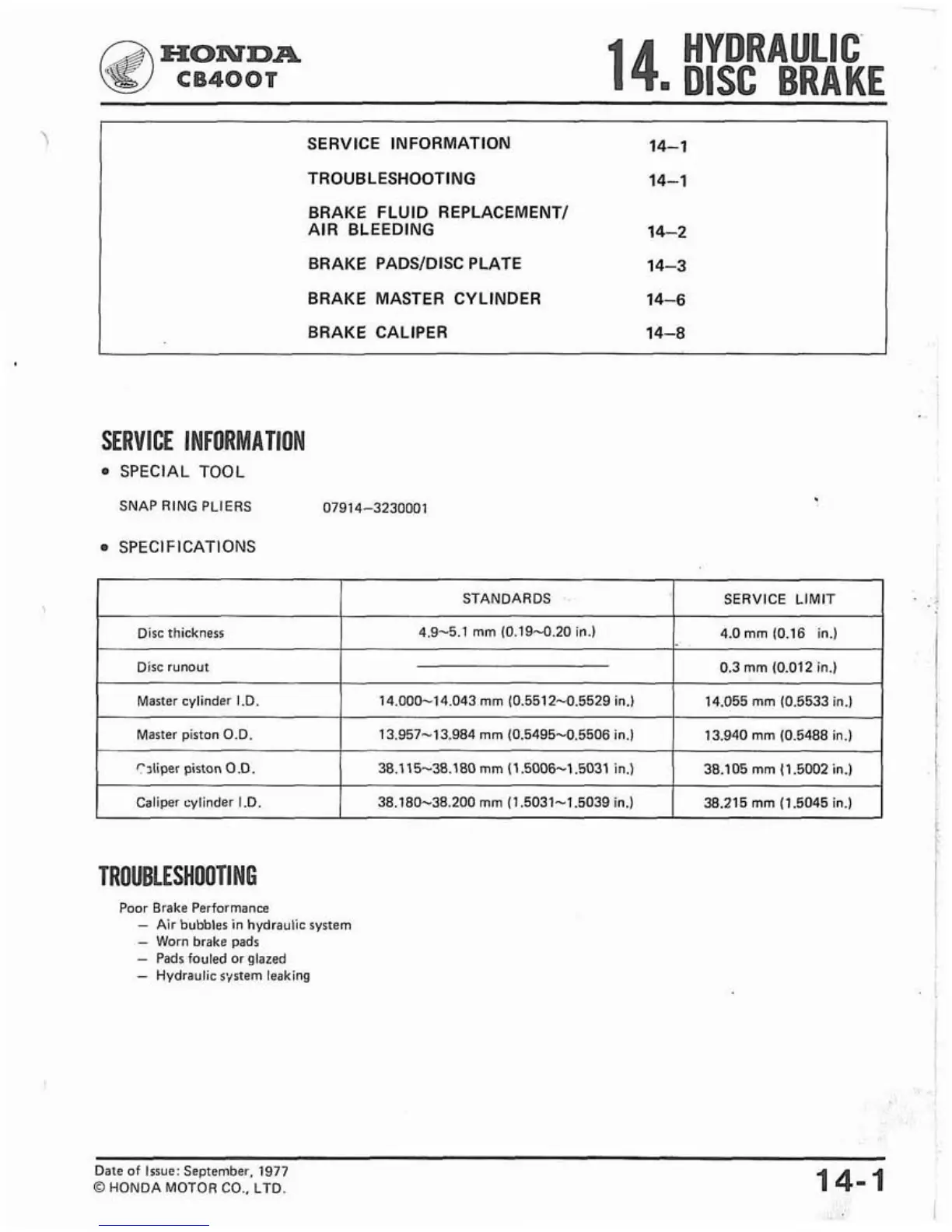

14 HYDRAULIC'
DISC BRAKE
SERVICE INFORMATION 14-1
TROUBLESHOOTING 14-1
BRAKE FLUID REPLACEMENT1
AIR BLEEDING 14-2
BRAKE
PADSIDISC PLATE 14-3
BRAKE MASTER CYLINDER
14-6
BRAKE CALIPER 14-8
SERVICE INFORMATION
SPECIAL TOOL
SNAP RING PLIERS 0791 4-3230001
SPEC1 FICATIONS
TROUBLESHOOTING
Disc thickness
Disc
runout
Master cylinder I.D.
Master piston O.D.
r3liper piston O.D.
Caliper cylinder I.D.
Poor Brake Performance
- Air bubbles in hydraulic system
- Worn brake pads
- Pads fouled or glazed
- Hydraulic system leaking
Date of Issue: September, 1977
@ HONDA MOTOR CO.. LTD.
STANDARDS
4.9-5.1 mm (0.19-0.20 in.)
14.000-14.043 mm (0.5512-0.5529 in.)
13.957-13.984 mrn (0.5495-0.5506 in.)
38.115-38.180 mm (1.5006-1.5031 in.)
38.180-38.200 rnm (1.5031-1.5039 in.)
SERVICE
LIMIT
4.0 mm (0.16 in.)
0.3 mm (0.012 in.)
14.055
mrn (0.5533 in.)
13.940 mm (0.5488 in.)
38.105 mm (1.5002 in.)
38.215 mm (1.5045 in.)
