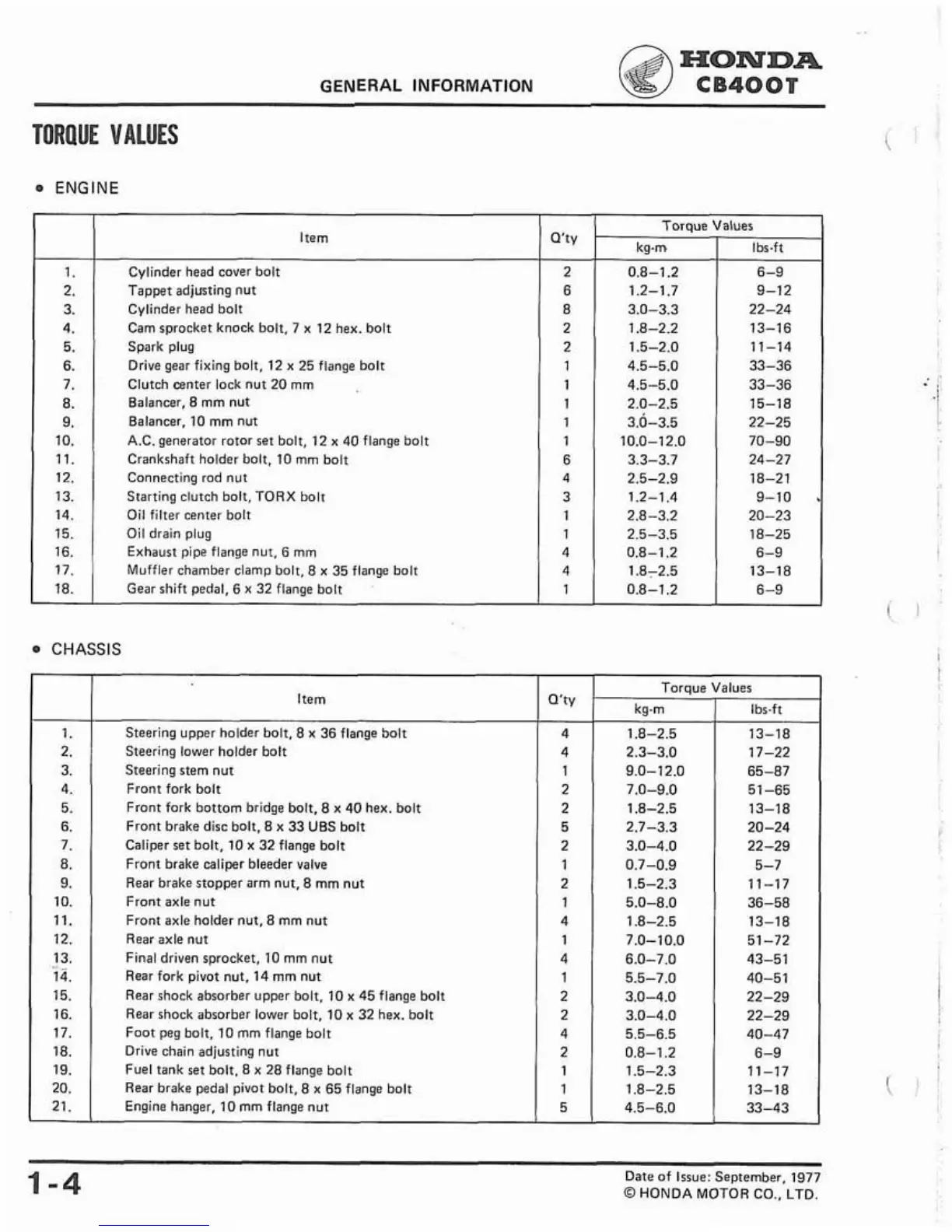

GENERAL INFORMATION CB400T
TORQUE VALUES
ENGINE
CHASSIS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
-
1-4
Date of Issue: September, 1977
@ HONDA MOTOR CO.. LTD.
Item
Cylinder head cover bolt
Tappet adjusting nut
Cylinder head bolt
Cam sprocket knock bolt,
7 x 12 hex. bolt
Spark plug
Drive gear fixing bolt,
12 x 25 flange bolt
Clutch
eenter lock nut 20 mm
Balancer, 8 mm nut
Balancer,
10 mm nut
A.C. generator rotor set bolt,
12 x 40 flange bolt
Crankshaft holder bolt,
10 mm bolt
Connecting rod nut
Starting clutch bolt, TORX bolt
Oil filter center bolt
Oil drain plug
Exhaust pipe flange nut.
6 mm
Muffler chamber clamp bolt, 8 x 35 flange bolt
Gear shift pedal,
6 x 32 flange bolt
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Q'ty
2
6
8
2
2
1
1
1
1
1
6
4
3
1
1
4
4
1
Item
Steering upper holder bolt. 8 x 36 flange bolt
Steering lower holder bolt
Steering stem nut
Front fork bolt
Front fork bottom bridge bolt,
8 x 40 hex. bolt
Front brake disc bolt,
8 x 33 UBS bolt
Caliper set bolt,
10 x 32 flange bolt
Front brake caliper bleeder valve
Rear brake stopper arm nut,
8 mm nut
Front axle nut
Front axle holder nut.
8 mm nut
Rear axle nut
Final driven sprocket,
10 mm nut
Rear fork pivot nut.
14 rnm nut
Rear shock absorber upper bolt,
10 x 45 flange bolt
Rear shock absorber lower bolt,
10 x 32 hex. bolt
Foot peg bolt.
10 mm flange bolt
Drive chain adjusting nut
Fuel tank set bolt.
8 x 28 flange bolt
Rear brake pedal pivot bolt,
8 x 65 flange bolt
Engine hanger,
10 mm flange nut
Torque
kg-m
0.8-1.2
1.2-1.7
3.0-3.3
1.8-2.2
1.5-2.0
4.5-5.0
4.5-5.0
2.0-2.5
3.0-3.5
10.0-12.0
3.3-3.7
2.5-2.9
1.2-1.4
2.8-3.2
2.5-3.5
0.8-1.2
1.872.5
0.8-1.2
Q'ty
4
4
1
2
2
5
2
1
2
1
4
1
4
1
2
2
4
2
1
1
5
Torque
kg-m
1.8-2.5
2.3-3.0
9.0-12.0
7.0-9.0
1.8-2.5
2.7-3.3
3.0-4.0
0.7-0.9
1.5-2.3
5.0-8.0
1
.8-2.5
7.0-10.0
6.0-7.0
5.5-7.0
3.0-4.0
3.0-4.0
5.5-6.5
0.8-1.2
1.5-2.3
1.8-2.5
4.5-6.0
Values
Ibs-ft
6-9
9-12
22-24
13-16
11-14
33-36
33-36
15-18
22-25
70-90
24-27
18-21
9-10
.
20-23
18-25
6-9
13-18
6-9
Values
Ibs.ft
13-18
17-22
65-87
51 -65
13-18
20-24
22-29
5-7
11-17
36-58
13-18
51-72
43-51
40-51
22-29
22-29
40-47
6-9
11-17
13-18
33-43
