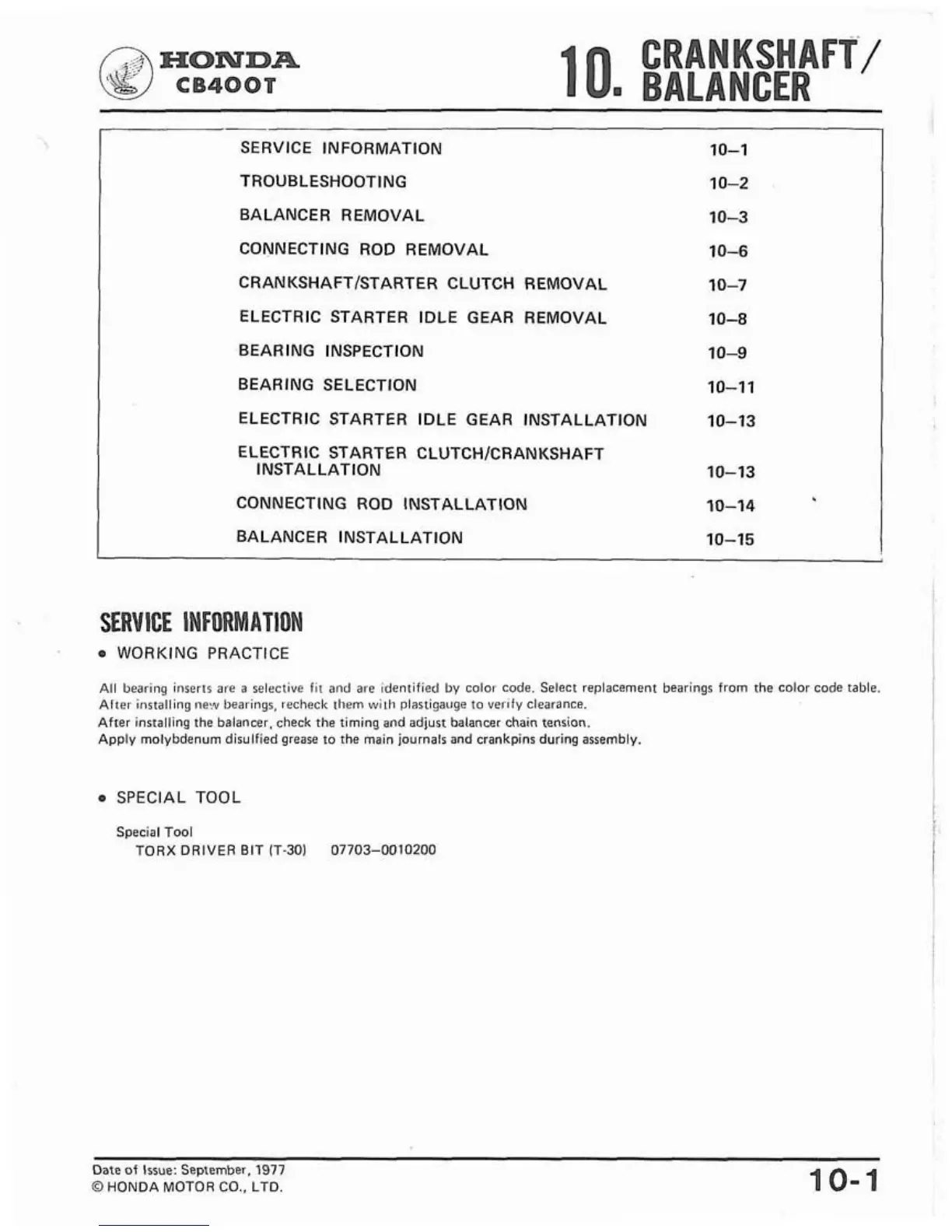

HONDA
CB400T
CRANKSHAFT/
10.
BALANCER
--
SERVICE INFORMATION 10-1
TROUBLESHOOTING 10-2
BALANCER REMOVAL 10-3
CONNECTING ROD REMOVAL 10-6
CRANKSHAFTISTARTER CLUTCH REMOVAL 10-7
ELECTRIC STARTER IDLE GEAR REMOVAL 10-8
BEARING INSPECTION
10-9
BEARING SELECTION 10-11
ELECTRIC STARTER IDLE GEAR INSTALLATION 10-13
ELECTRIC STARTER CLUTCHICRANKSHAFT
INSTALLATION 10-13
CONNECTING ROD INSTALLATION
10-14
BALANCER INSTALLATION 10-15
SERVICE INFORMATION
WORKING PRACTICE
All bearing inserts are a selective fit and are identified by color code. Select replacement bearings from the color code table.
After installing
ne:v bearings, recheck them with plastigauge to verify clearance.
After installing the balancer, check the timing and adjust balancer chain tension.
Apply molybdenum disulfied grease to the main journals and crankpins during assembly.
i
SPECIAL TOOL
Special Tool
TORX DRIVER BIT
(T-30) 07703-0010200
Date of Issue: September, 1977
Q
HONDA MOTOR CO., LTD.
10-1
