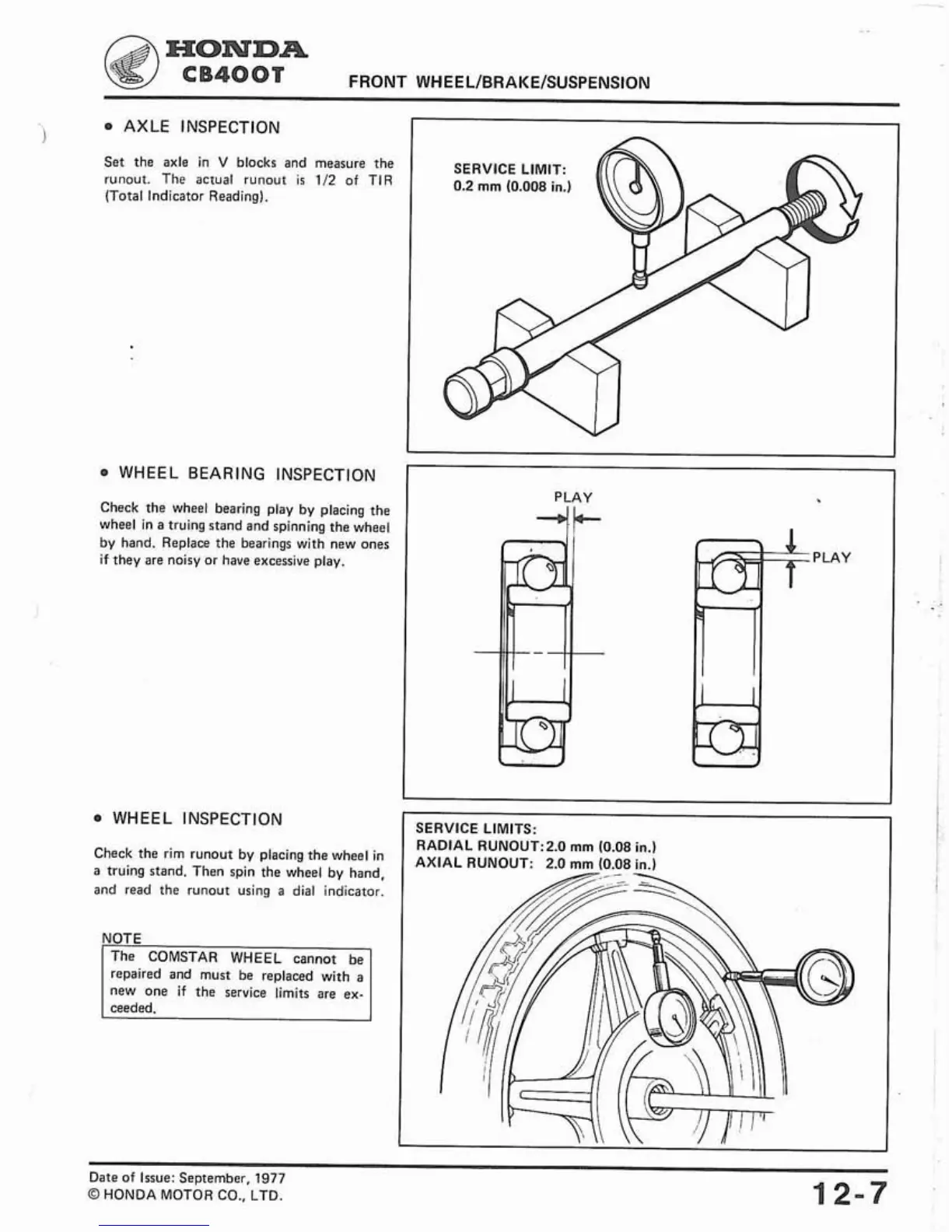

WHEEL BEARING INSPECTION
~ ~
HONDA
CB400T
FRONT WHEEL/BRAKE/SUSPENSION
Check the wheel bearing play by placing the
wheel in a truing stand and spinning the wheel
by hand. Replace the bearings with new ones
if they are noisy or have excessive play.
AXLE INSPECTION
Set the axle in
V
blocks and measure the
runout. The actual runout
is
112
of TIR
(Total Indicator Reading).
WHEEL INSPECTION
SERVICE LIMIT:
0.2 mm 10.008 in.)
Check the rim
runout by placing the wheel in
a
truing stand. Then spin the wheel by hand.
and read the
runout using a dial indicator.
repaired and must be replaced with a
new one if the service limits are ex-
ceeded.
PLAY
I
SERVICE LIMITS:
RADIAL
RUNOUT:2.0 mm (0.08 in.)
AXIAL
RUNOUT: 2.0 mm (0.08 in.)
Date of Issue: September,
1977
o
HONDA
MOTOR
CO.,
LTD.
12-7
